DDCM6V5.0 DDREAM

  • Support 6-axis CNC control.

  • USB communication interface, and power supply for the board.

  • 10 IO input, opto-isolated, It Can be configured to limit the emergency stop and other functions, all of them are 2edg port.

  • 3IO output with opto-isolated for spindle which can be set to M3,M7,M8,etc.

  • Up to 6 axes stepper-motor control port. Each port has up to 50KHz plus output.

  • Applicable to all versions of DrufelCNC software.

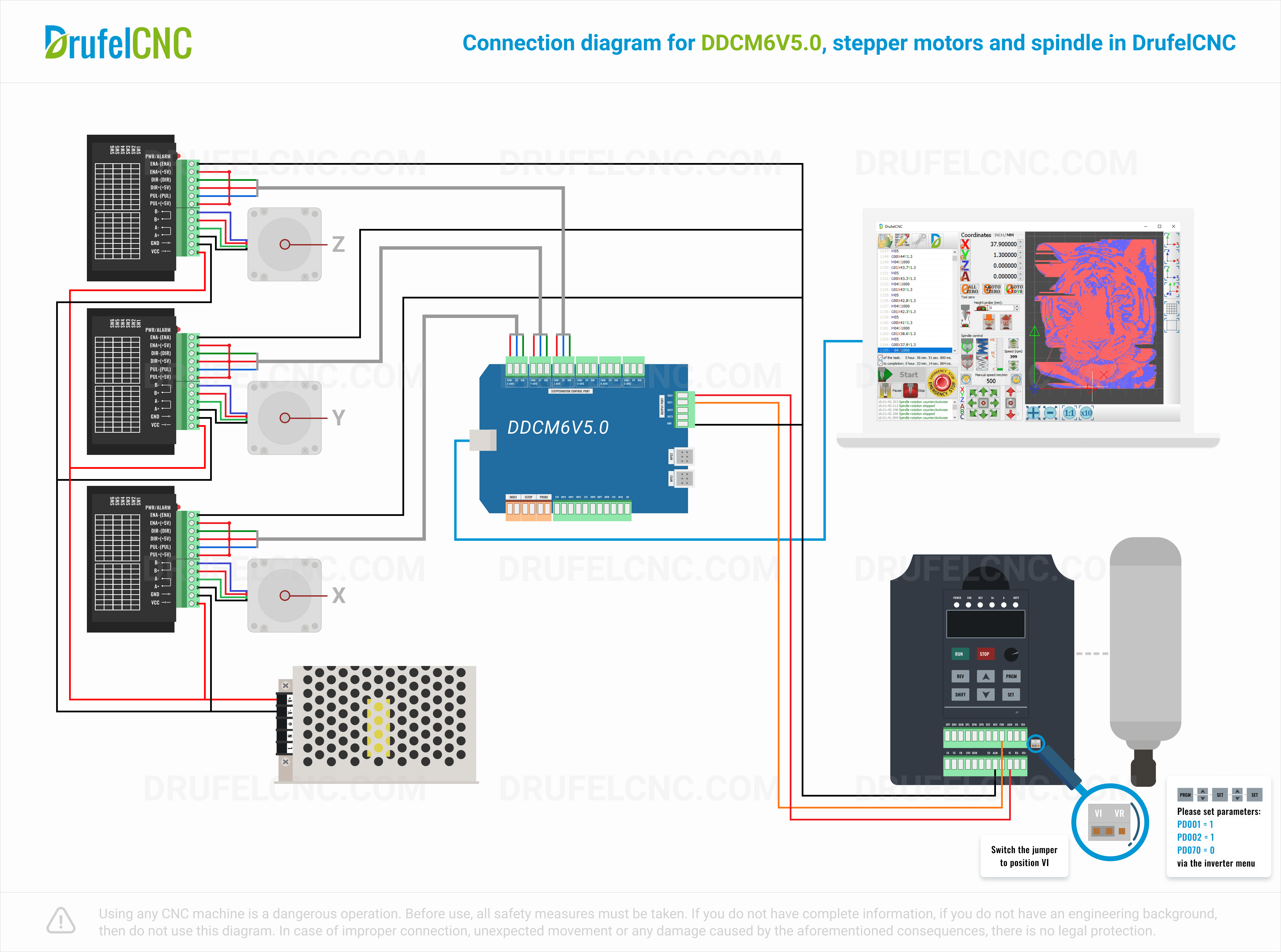

Connection diagram stepper motors and spindle

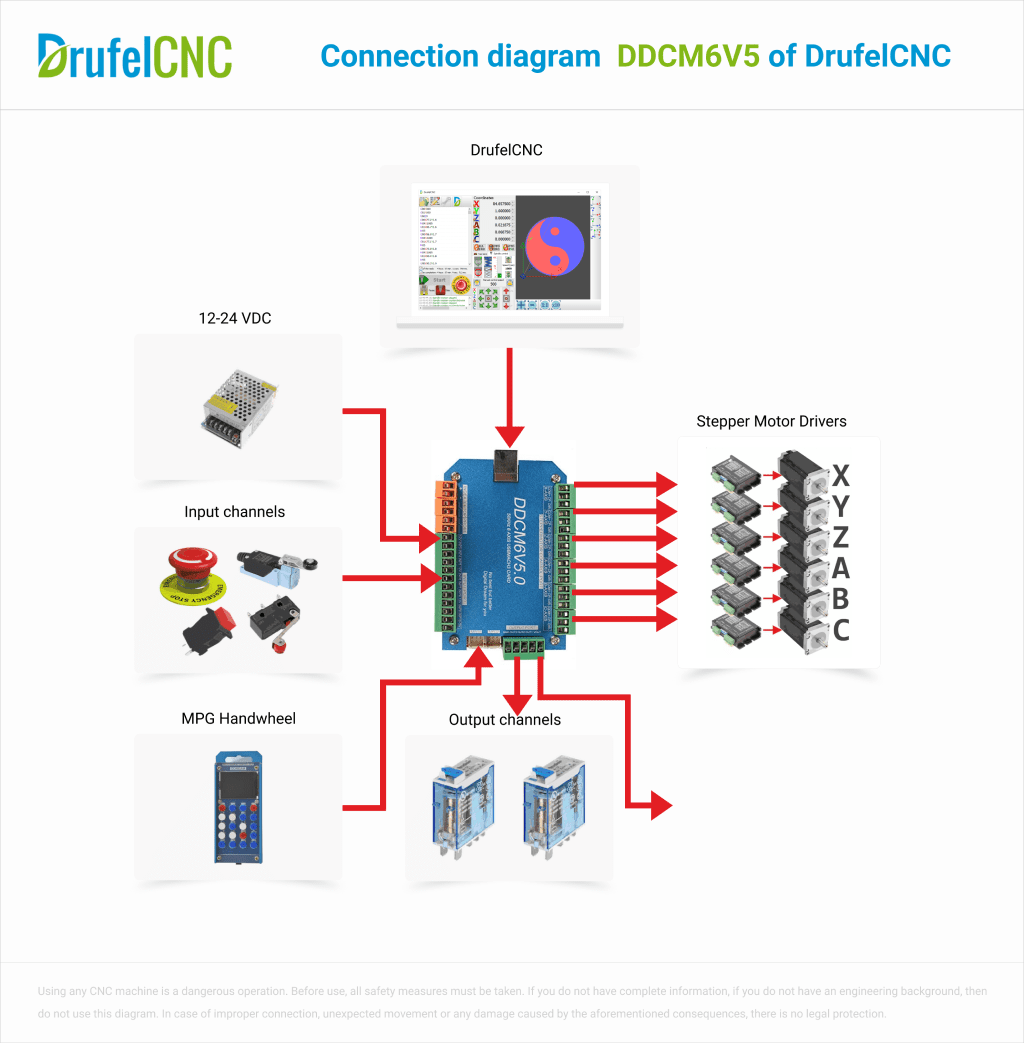

Base diagram

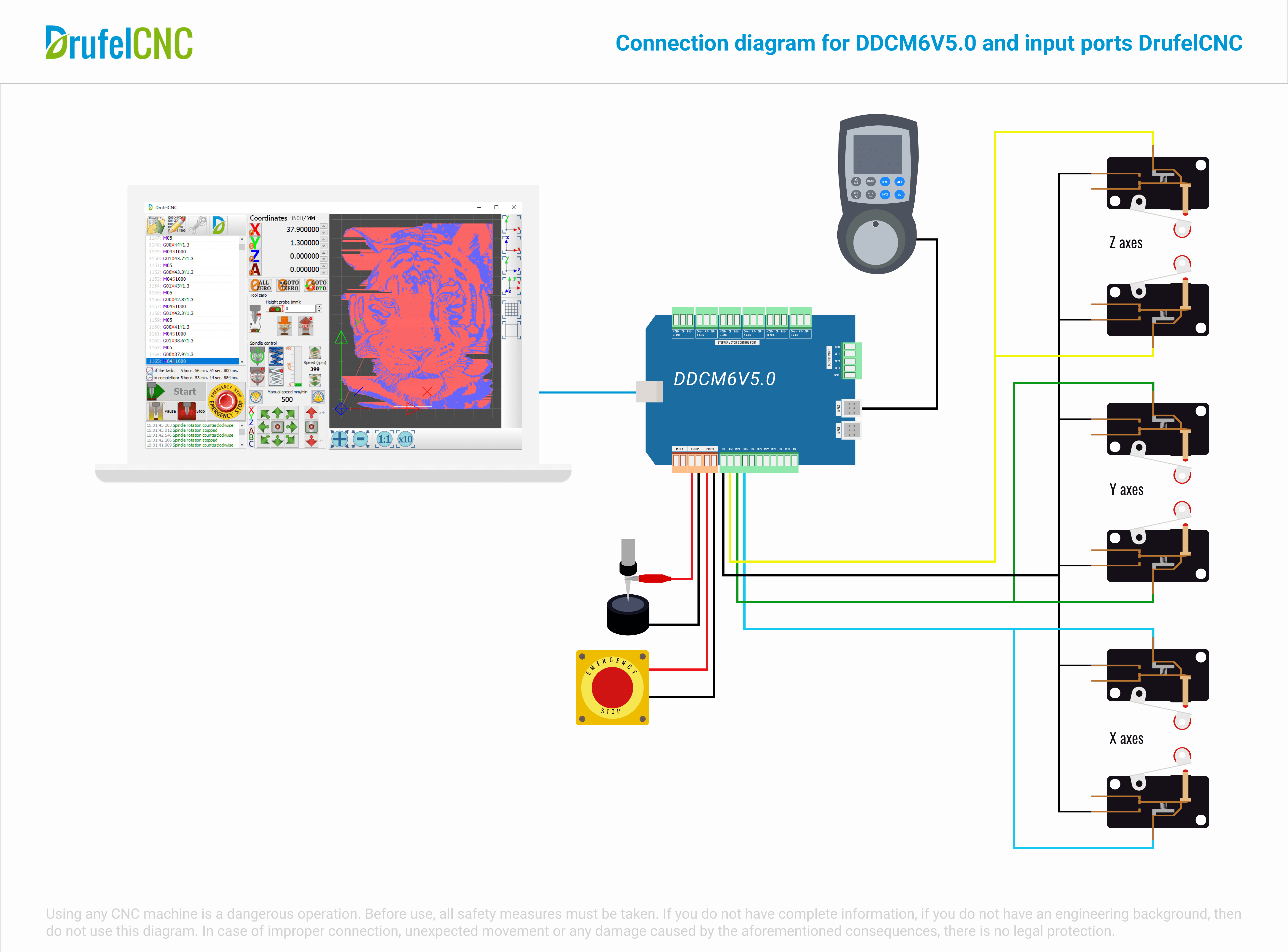

Connection diagram input ports

Connection diagram MPG

Video
