Best CNC software. DrufelCNC is effective for all types of cnc machine: milling machine, engraving machine or turning. Suitable not only for hobby cnc, but also for professional use.
G-code | Description |
---|---|
G00 | Accelerated tool movement (idling) |
G01 | Linear interpolation |
G02 | Circular interpolation, clockwise. Support I,J,K and R |
G03 | Circular interpolation, counterclockwise. Support I,J,K and R |
G04 | Delay in program execution |
G10 | Set new coordinates for the origin |
G17 | XY plane selection |
G18 | ZX plane selection |
G19 | YZ plane selection |
G20 | Programming in inches |
G21 | Programming in millimeters (mm) |
G31 | Movement of axes to a given position |
G38.n | Straight probe |
G50 | Reset all scale factors to 1.0 |
G51 | Turn on scale factors |
G53 | Disable the offset of the origin of the machine coordinate system |
G68 | Coordinate Rotation |
G69 | Cancel Rotation |
G80 | Cancel Canned Cycle |
G81 | Simple Drilling Cycle |
G82 | Drilling Cycle with Dwell |
G90 | Specifying the absolute coordinates of the reference points of the trajectory |
G91 | Setting coordinates incrementally with the last entered reference point |
G90.1 | Absolute distance mode for I , J and K offsets |
G91.1 | Incremental distance mode for I, J and K offsets |
G98 | Return to initial Z level in canned cycle |
G99 | Return to R level in canned cycle |
M-code | Description |
М03 | Start spindle rotation clockwise |
M04 | Start spindle rotation counter-clockwise |
M05 | Stop spindle rotation |
M07 | Enable additional cooling |
M08 | Turn on main cooling |
M09 | Turn off cooling |
M13 | Enable cooling and spindle rotation clockwise |
M14 | Enable cooling and spindle rotation counter-clockwise |

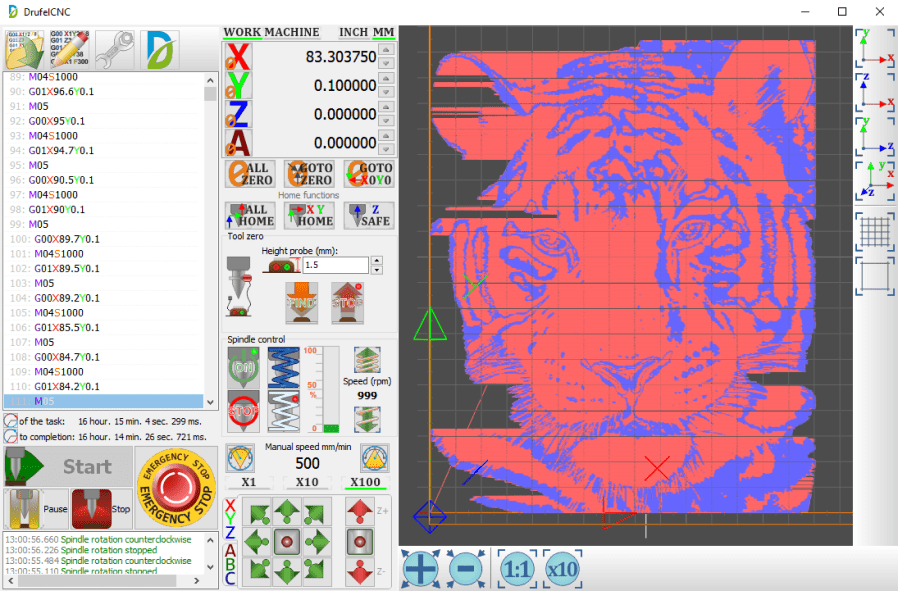

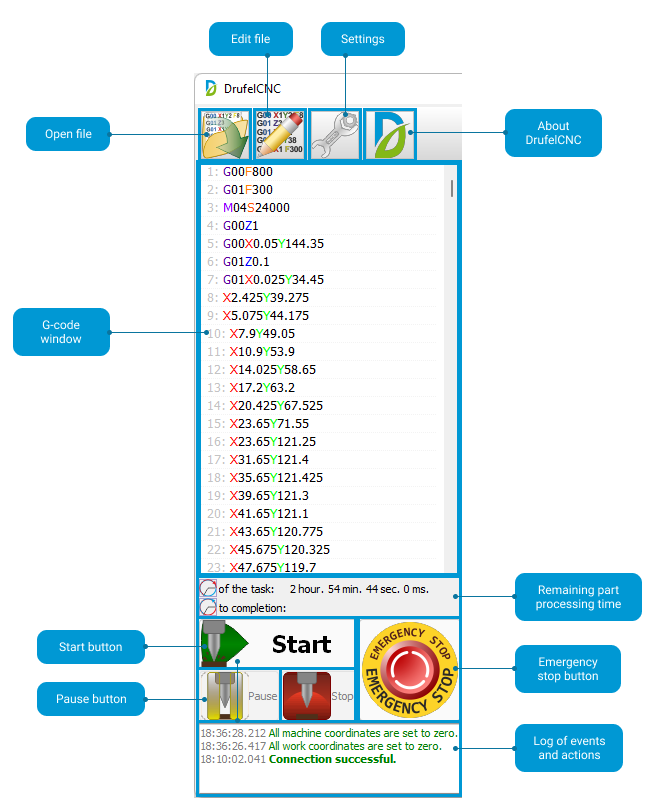

G-code window:
Functions | Description |
---|---|
Open file | Open file button |
Edit file | Edit g-code file button |
Settings | Function setting button |
About DrufelCNC | DrufelCNC information button |
G-code window | Display of G-code |
Start | Start button |
Pause | Pause button |
Remaining time part | Remaining part processing time |
Emergency stop | Emergency stop button |
Log of events and actions | Log of events and actions |

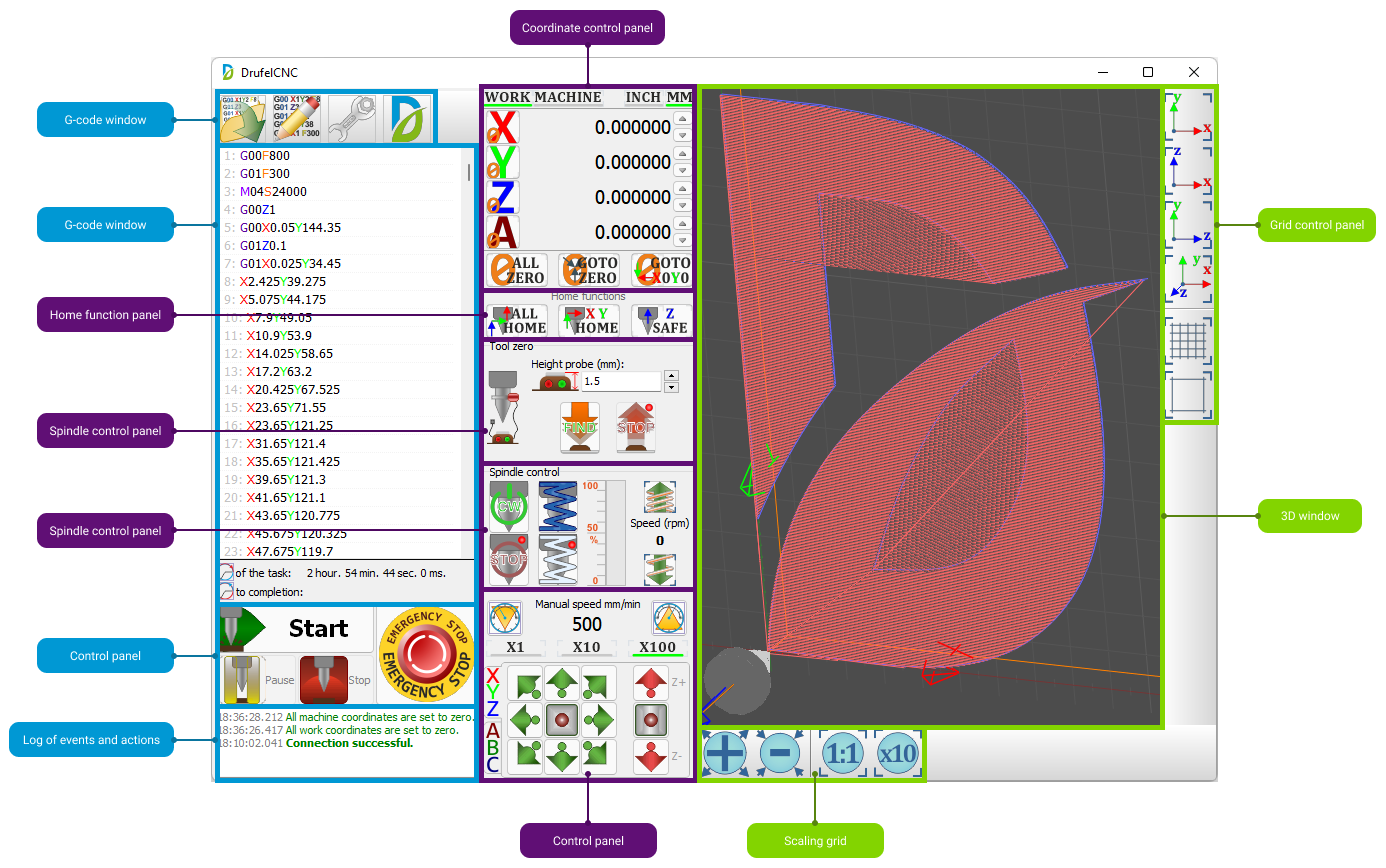

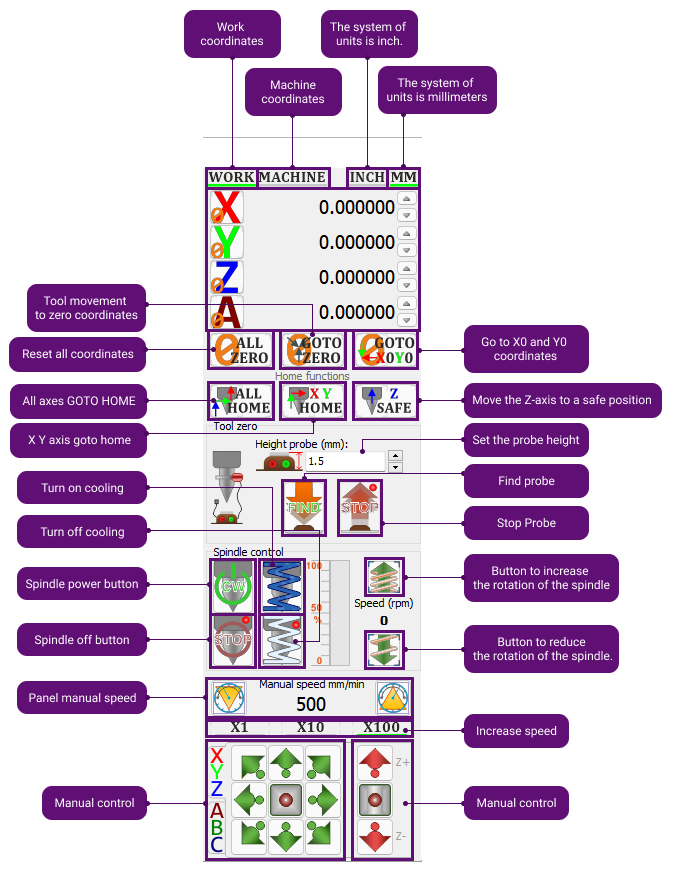

Base functions:
Functions | Description |
---|---|
Work coordinates | Activating work coordinate mode |
Machine coordinates | Activating machine coordinate mode |
Inch | Activating inch mode |
Millimeters | Activating millimeter mode |
All zero | Reset all coordinates |
Go to home | Tool movement to zero coordinates |
Go to X0 Y0 | Go to X0 and Y0 coordinates |
All home | All axes GOTO HOME |
X Y home | X Y axis goto home |
Z safe | Move the Z-axis to a safe position |
Set the probe height | Set the probe height |
Find probe | Find probe |
Stop Probe | Stop Probe |
Button to increase the rotation of the spindle | Button to increase the rotation of the spindle |
Button to reduce the rotation of the spindle. | Button to reduce the rotation of the spindle. |
Spindle power | Spindle power button |
Spindle off | Spindle off button |
Turn on cooling | Turn on cooling button |
Turn off cooling | Turn off cooling button |
Panel manual speed | Panel manual speed |
Manual control axes | Manual control axes |
Manual control z axes | Manual control z axes |
Increase speed | Increase speed |
Decrease in spindle rotation | Button to reduce the rotation of the spindle |
Increase spindle rotation | Button to increase the rotation of the spindle |
Stop Probe | Stop Probe button |
Find probe | Find probe button |
Set the probe height | Probe height button |

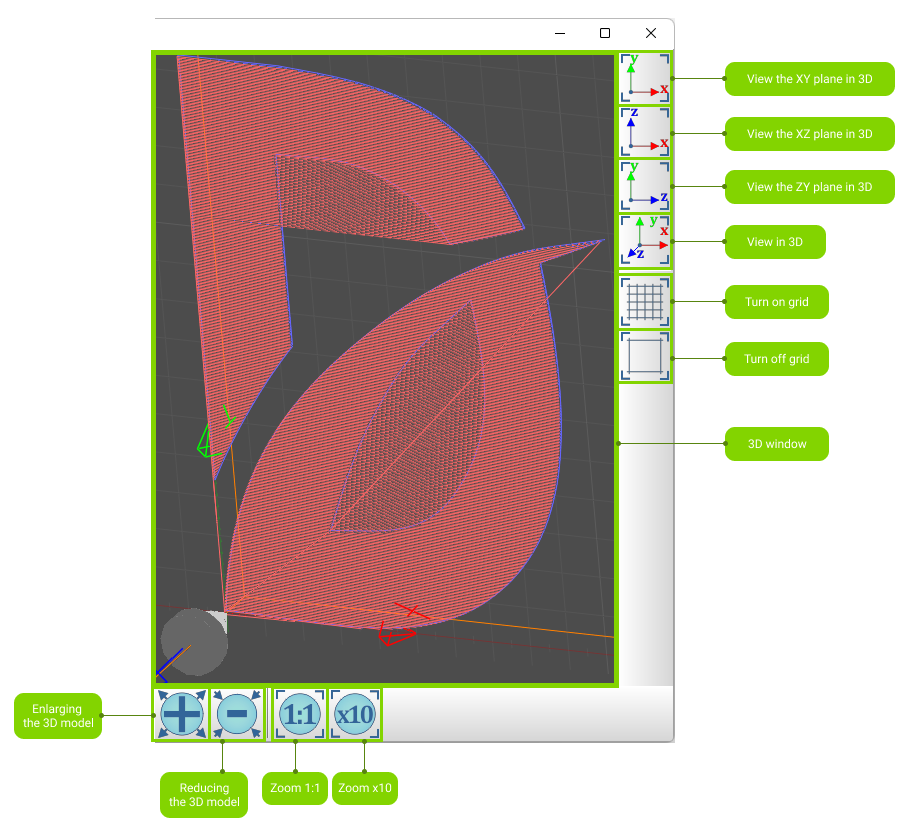

3D window:
Functions | Description |
---|---|
Scale 3D model | Scale 3D model button |
Reducing the 3D model | Reducing the 3D model button |
Zoom 1:1 | Zoom 1:1 button |
Zoom x10 | Zoom x10 button |
3D window | Display of 3D-model |
Turn off grid | Turn off grid button |
Turn on grid | Turn on grid button |
View in 3D | View in 3D button |
ZY plane in 3D | View the ZY plane in 3D |
XZ plane in 3D | View the XZ plane in 3D |
XY plane in 3D | View the XY plane in 3D |
