DDLM V1 DDREAM

  • Support 5-axis CNC control.

  • Power supply output 5V / 12V, support lines on 2 or 3 PNP proximity switch.

  • With 12 programmable input interface.

  • With a 8-channel DVR programmable output interface.

  • Maximum frequency 50KHz.

  • 5VDC power connection (USB).

  • Applicable to all versions of DrufelCNC software.

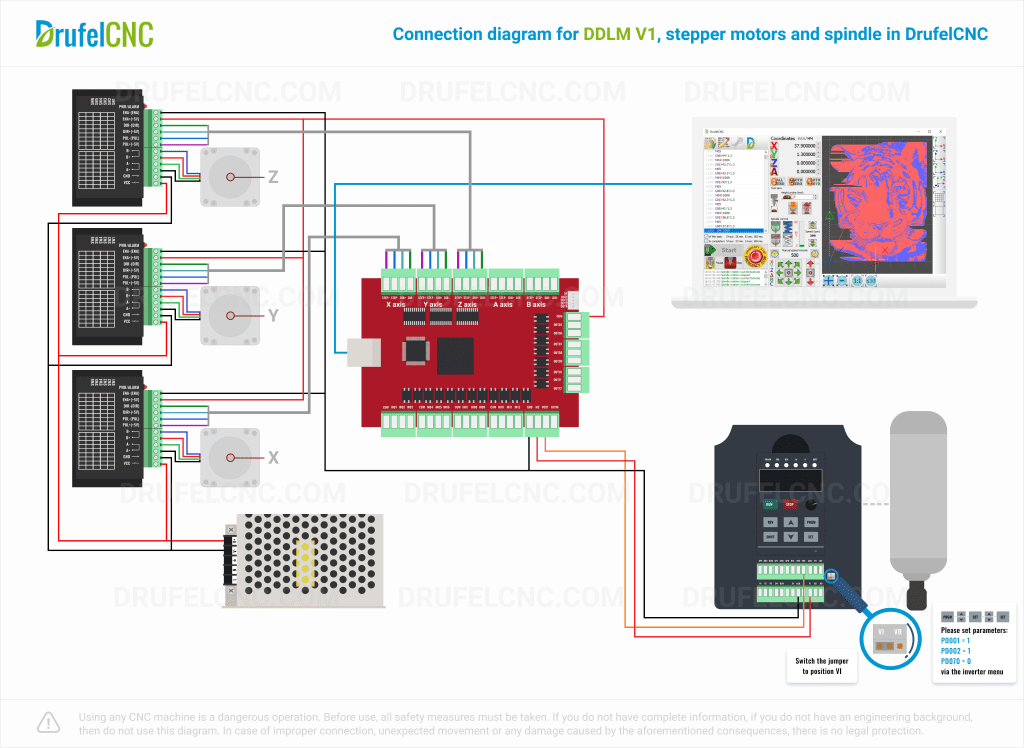

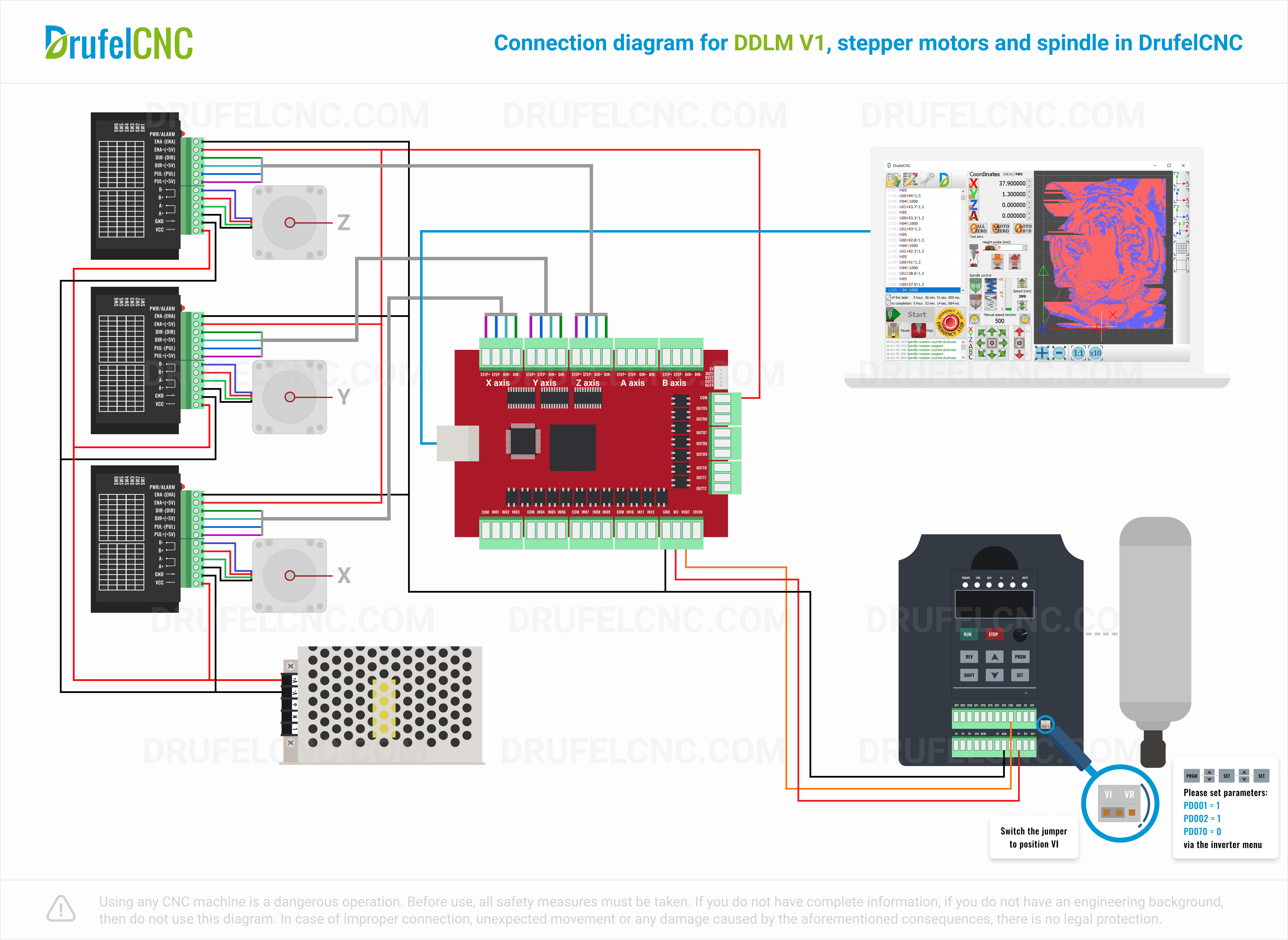

Connection diagram stepper motors and spindle

Base diagram

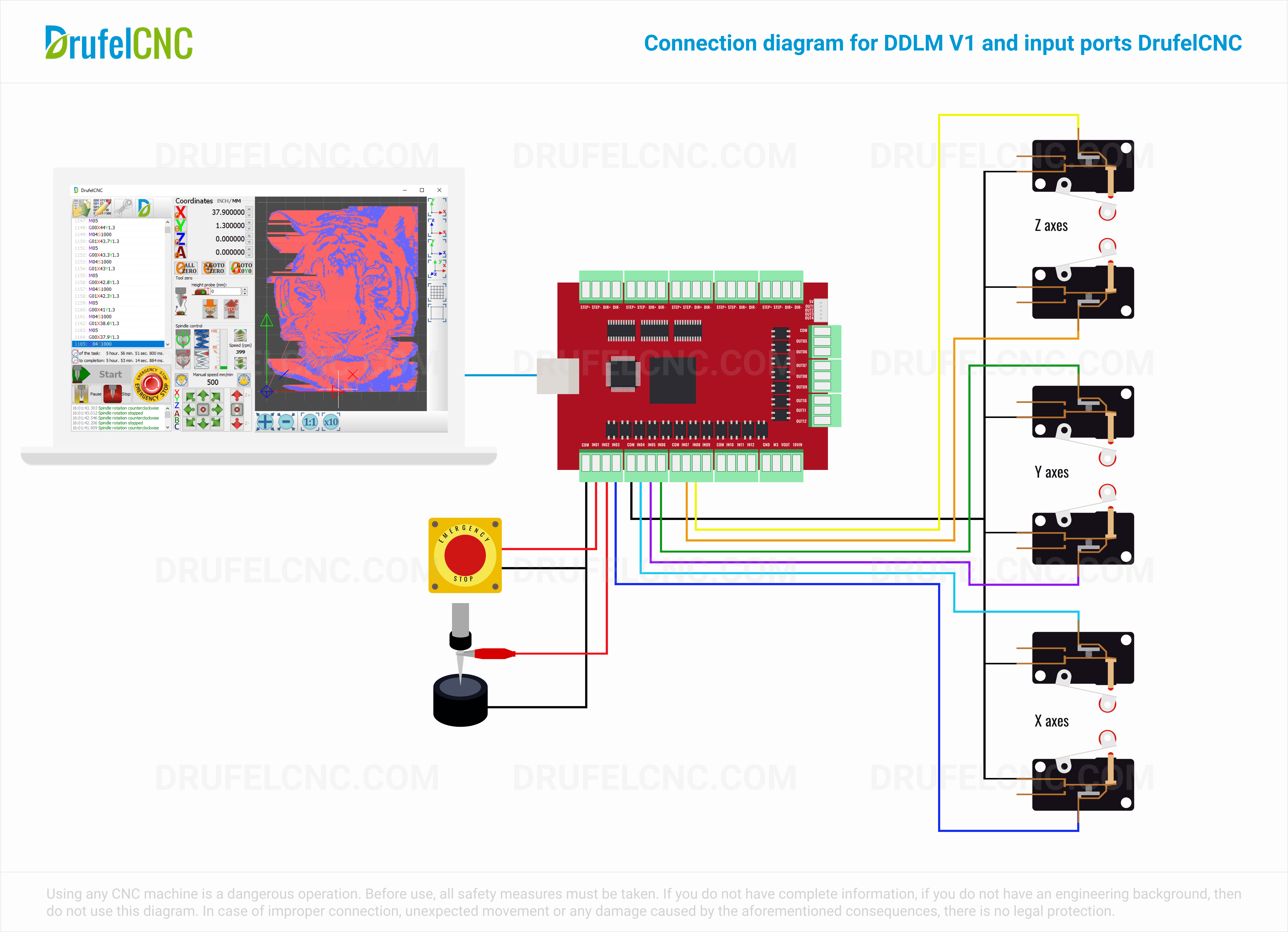

Connection diagram input ports

Connection diagram MPG

Video
