• Support 4-axis CNC control.

  • With 24 channel programmable input interface.

  • With 14 channel programmeable output interface.

  • Main axis speed adjusting PWM / VSO way (0-10) dual mode.

  • USB interface.

  • Max 200K stepper motor control impulse output, suitable for most CNC system.

  • Applicable to all versions of DrufelCNC software.

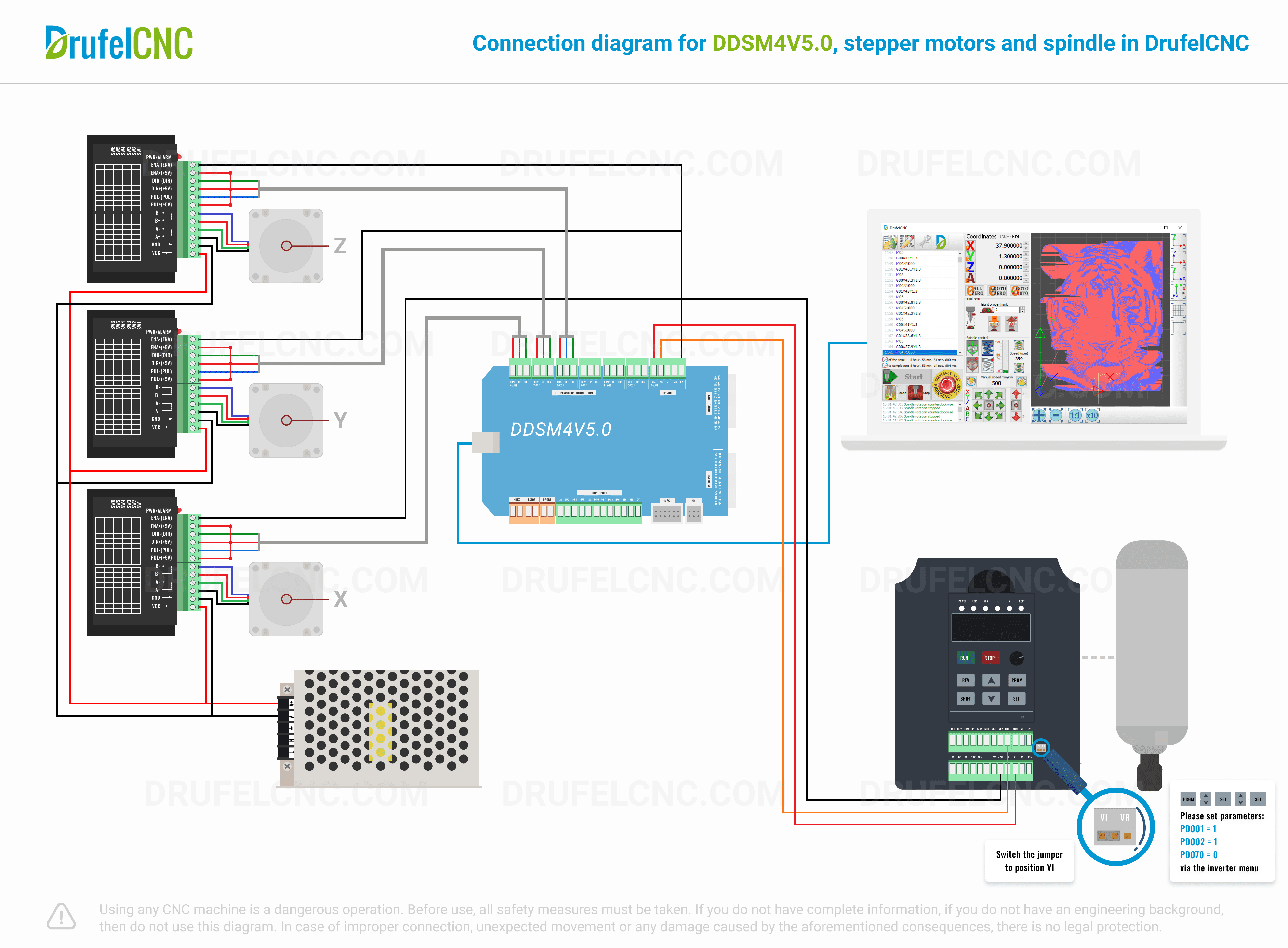

Connection diagram stepper motors and spindle

Base diagram

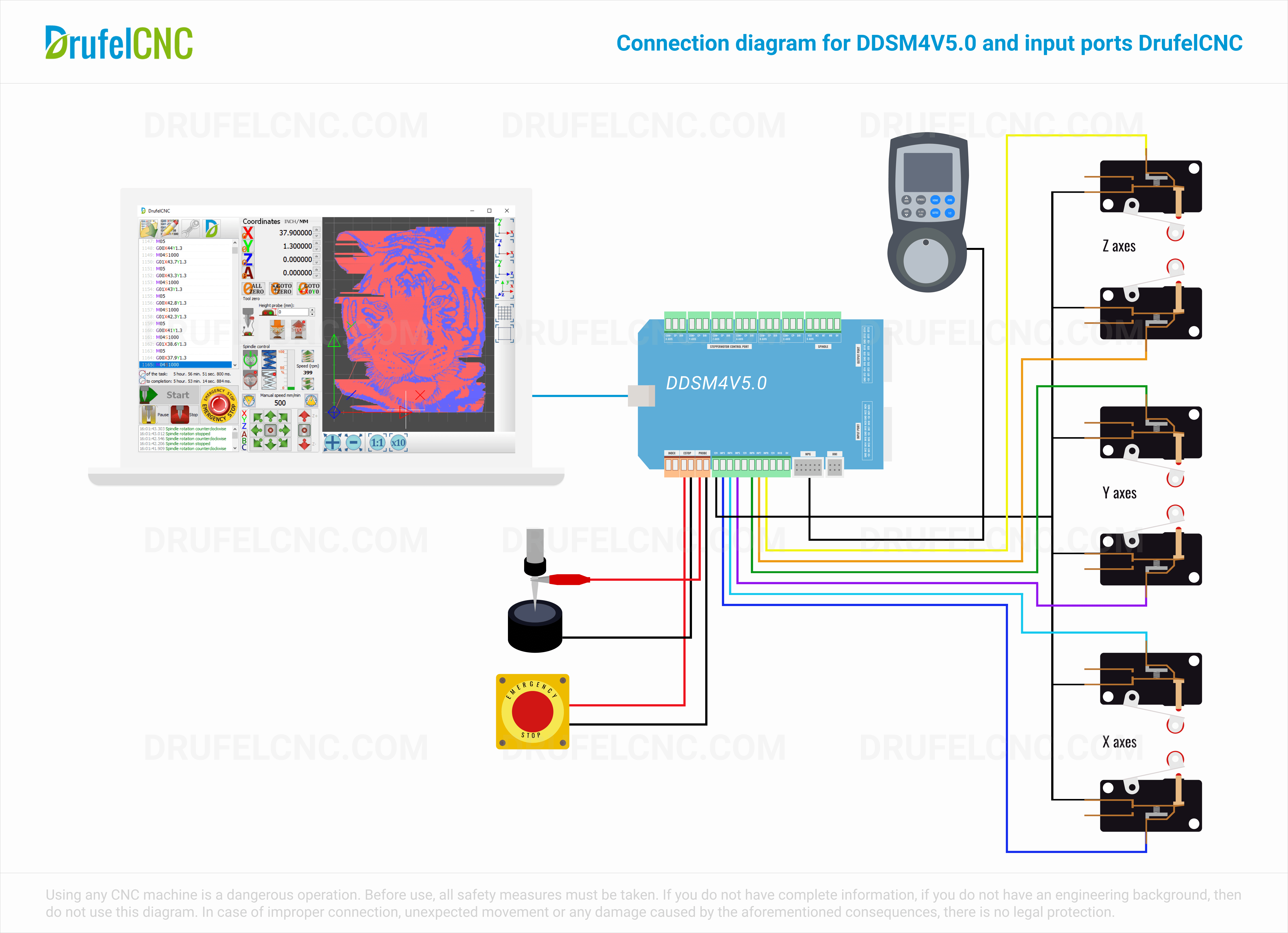

Connection diagram input ports

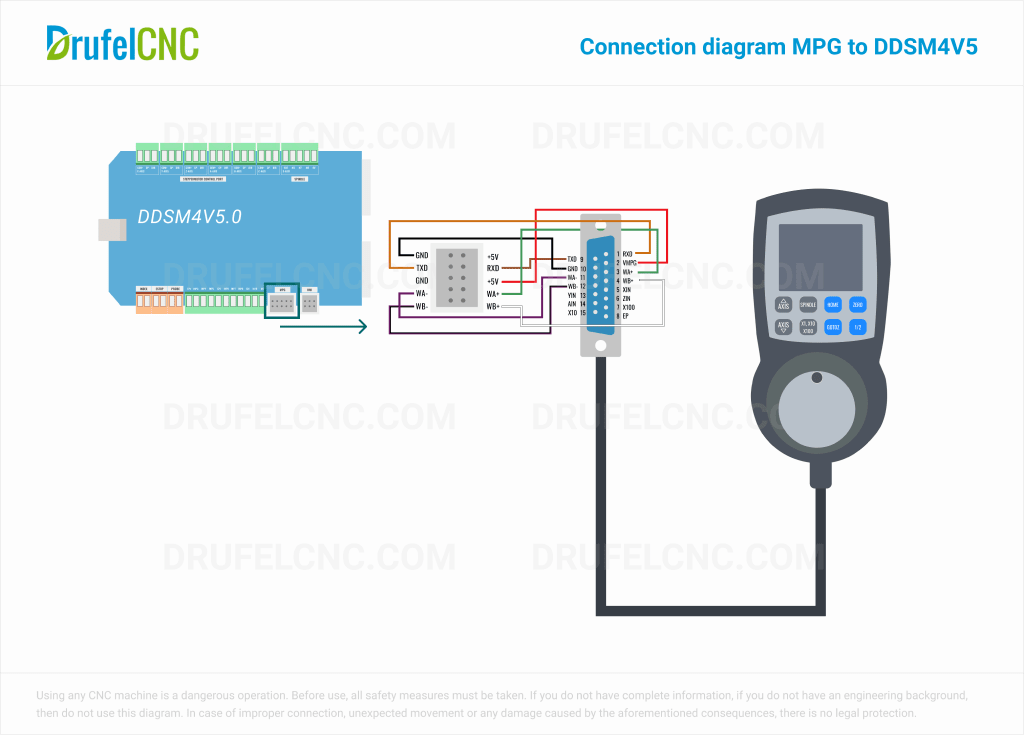

Connection diagram MPG
