NVCM4 Novusun

  • Support 4-axis CNC control.

  • Power of the control board: voltage 12-24 V DC, current more than 500 mA.

  • The maximum frequency of the output pulse is 100 kHz, and the pulse width can automatically change depending on the frequency of the pulse.

  • Support for the operating system Windows XP, Windows 7 (32 / 64bit), Windows 8, Windows 10.

  • Applicable to all versions of DrufelCNC software.


NVCM4 Novusun

Download user manual for cnc usb motion controller NVCM4. If you want us to support your controller, let us know! Fill out the feedback form.

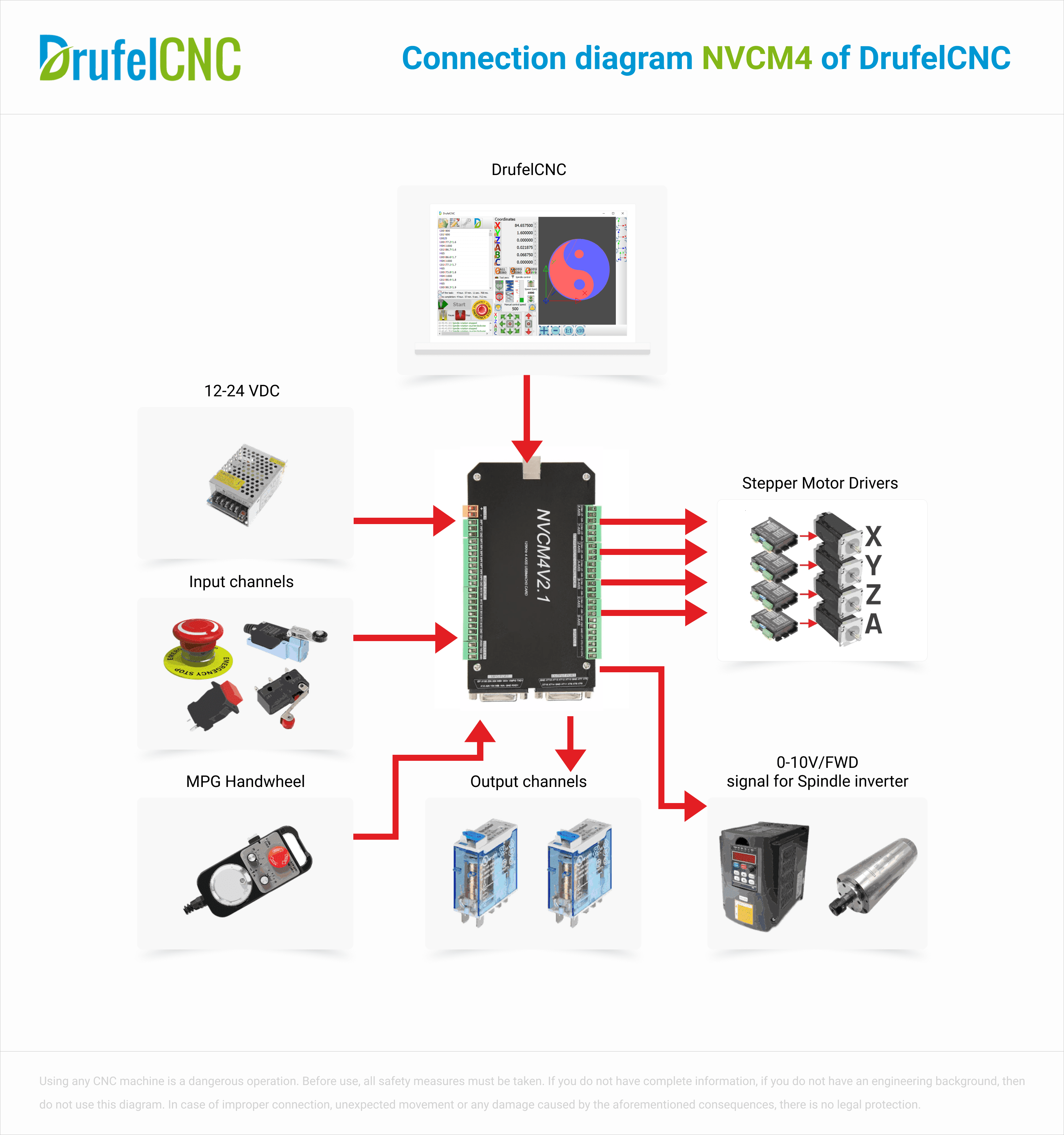

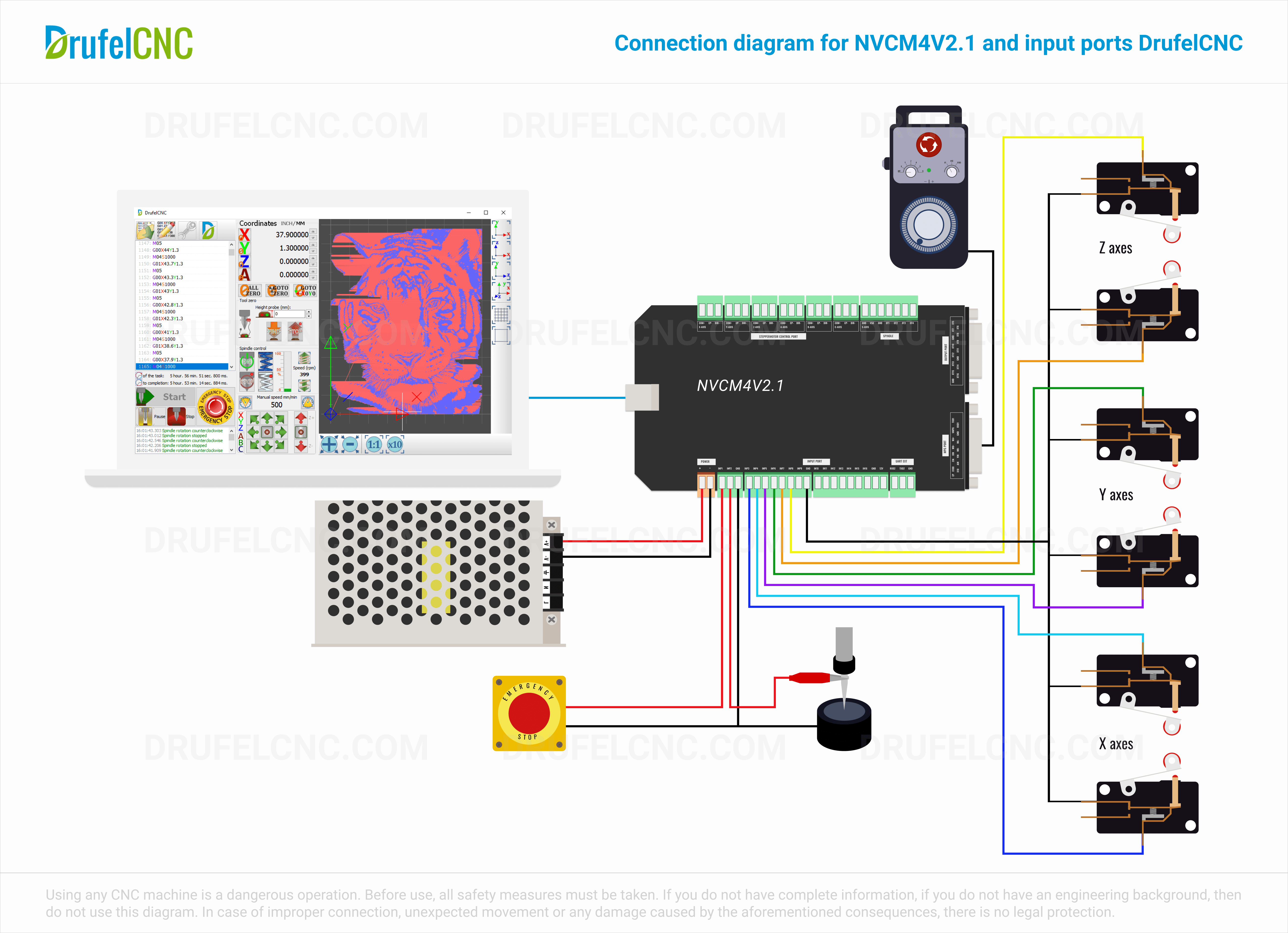

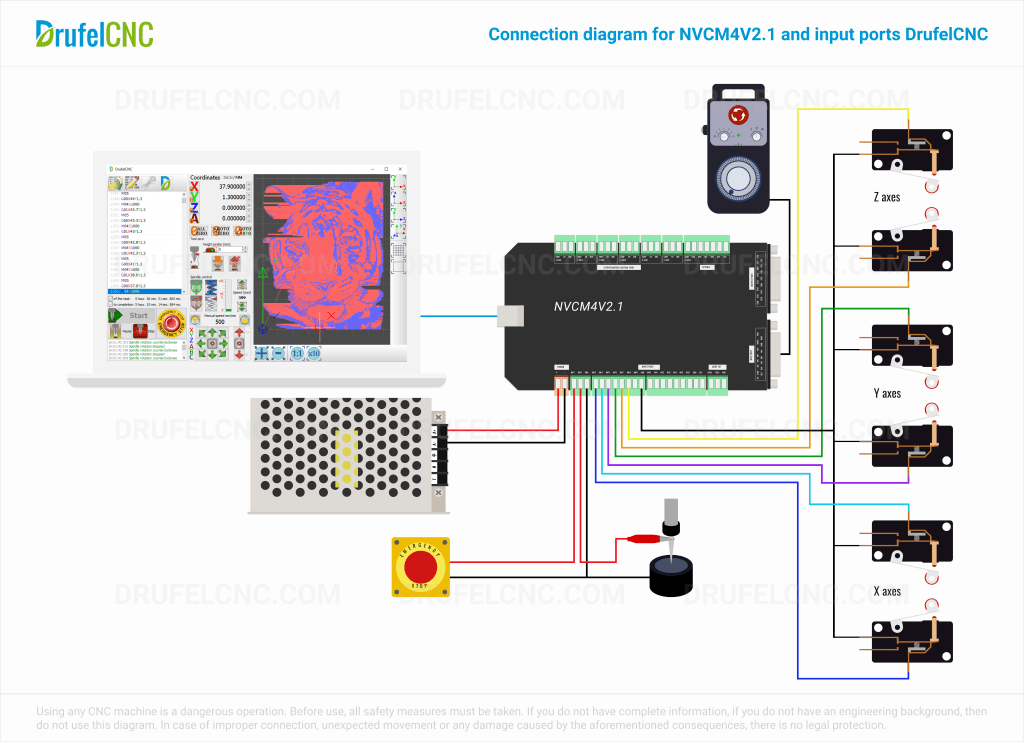

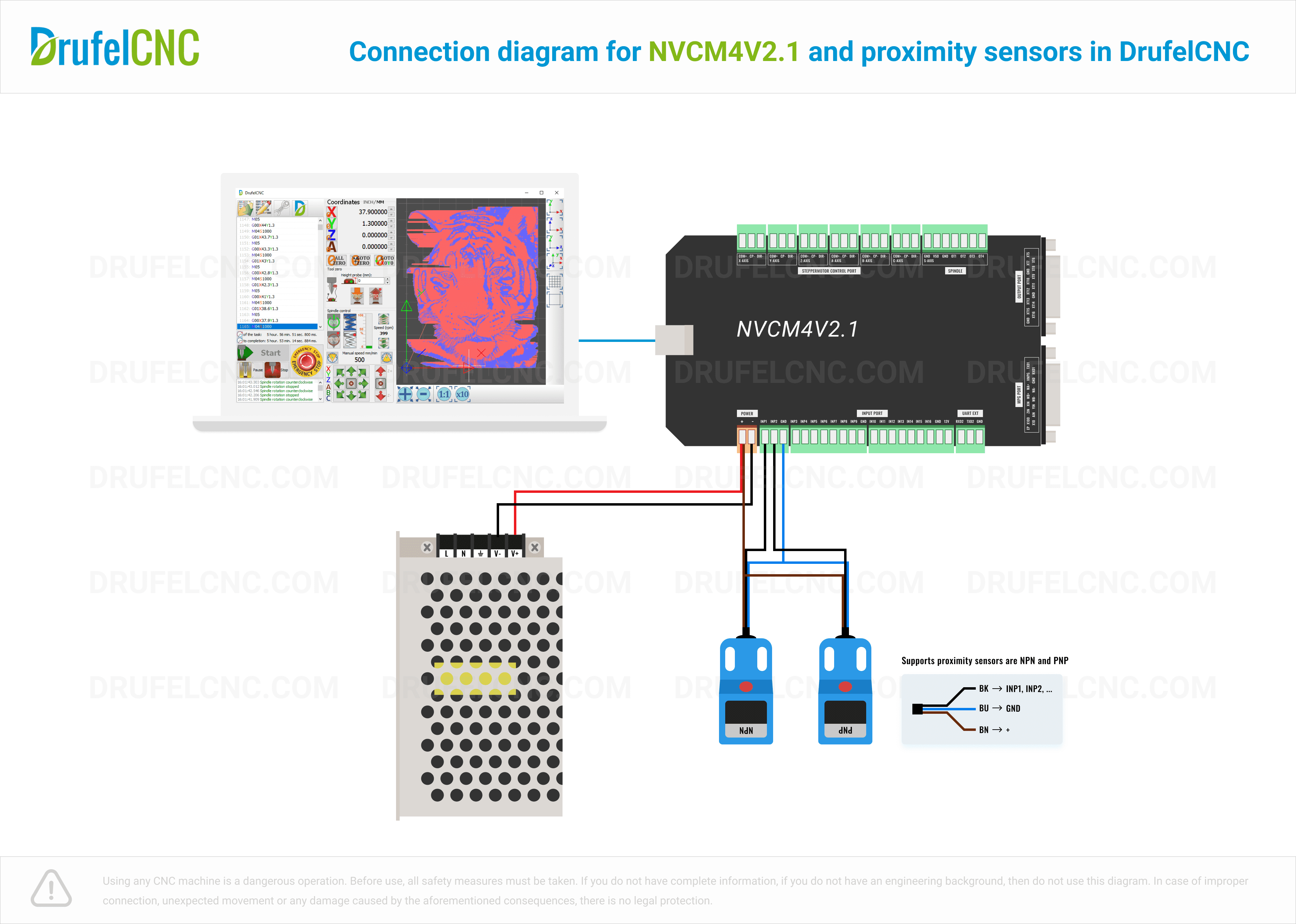

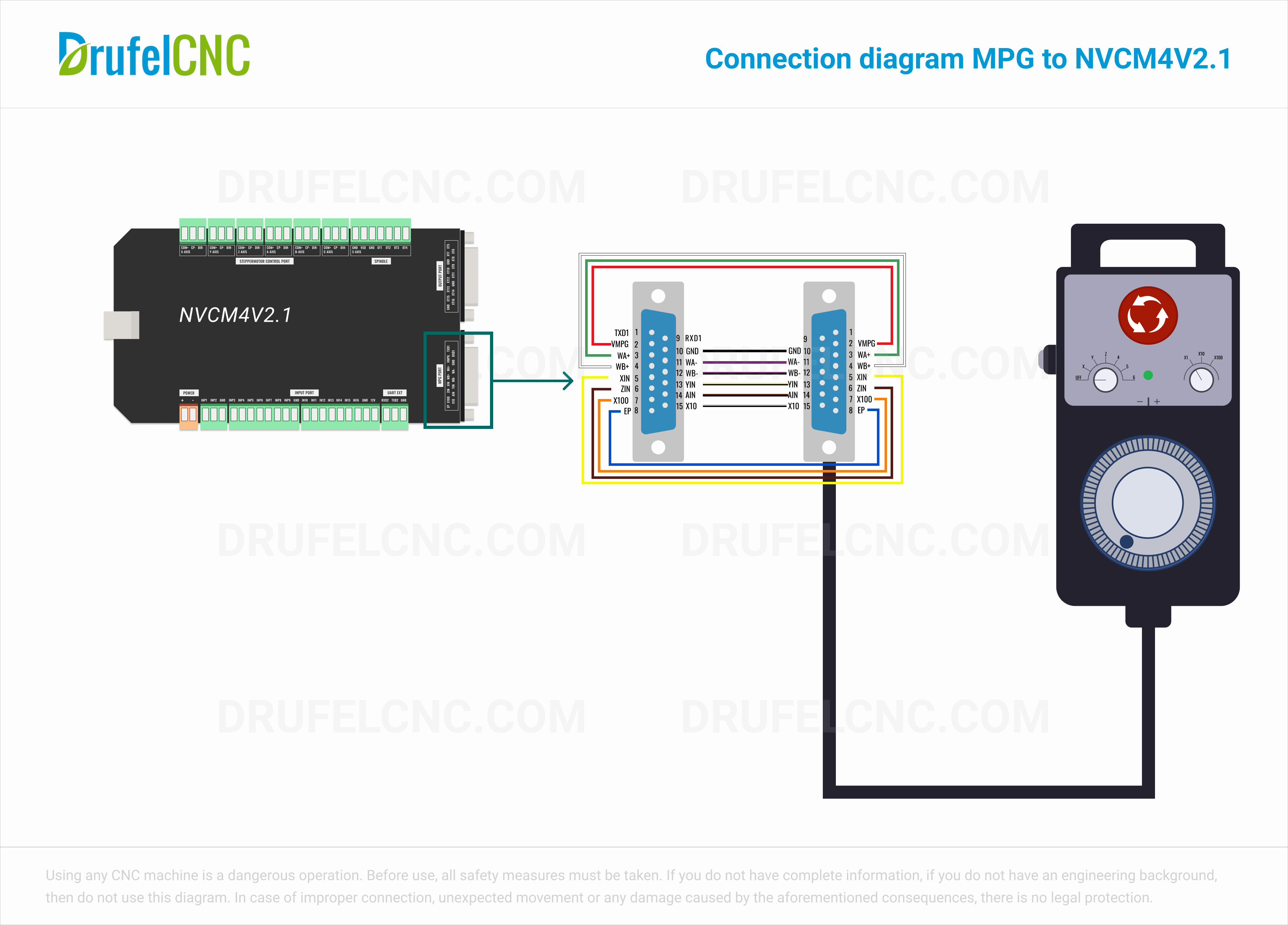

CONNECTION DIAGRAM


VIDEO
