NVUM SKV1 Novusun

  • Support 4-axis CNC control.

  • Support USB.

  • 8 ports photoelectric isolated input interface for ordinary digital data.

  • 3 ports photoelectric isolated output interface for ordinary digital data

  • 1 port 0-10V spindle speed analog output interface

  • Applicable to all versions of DrufelCNC software.

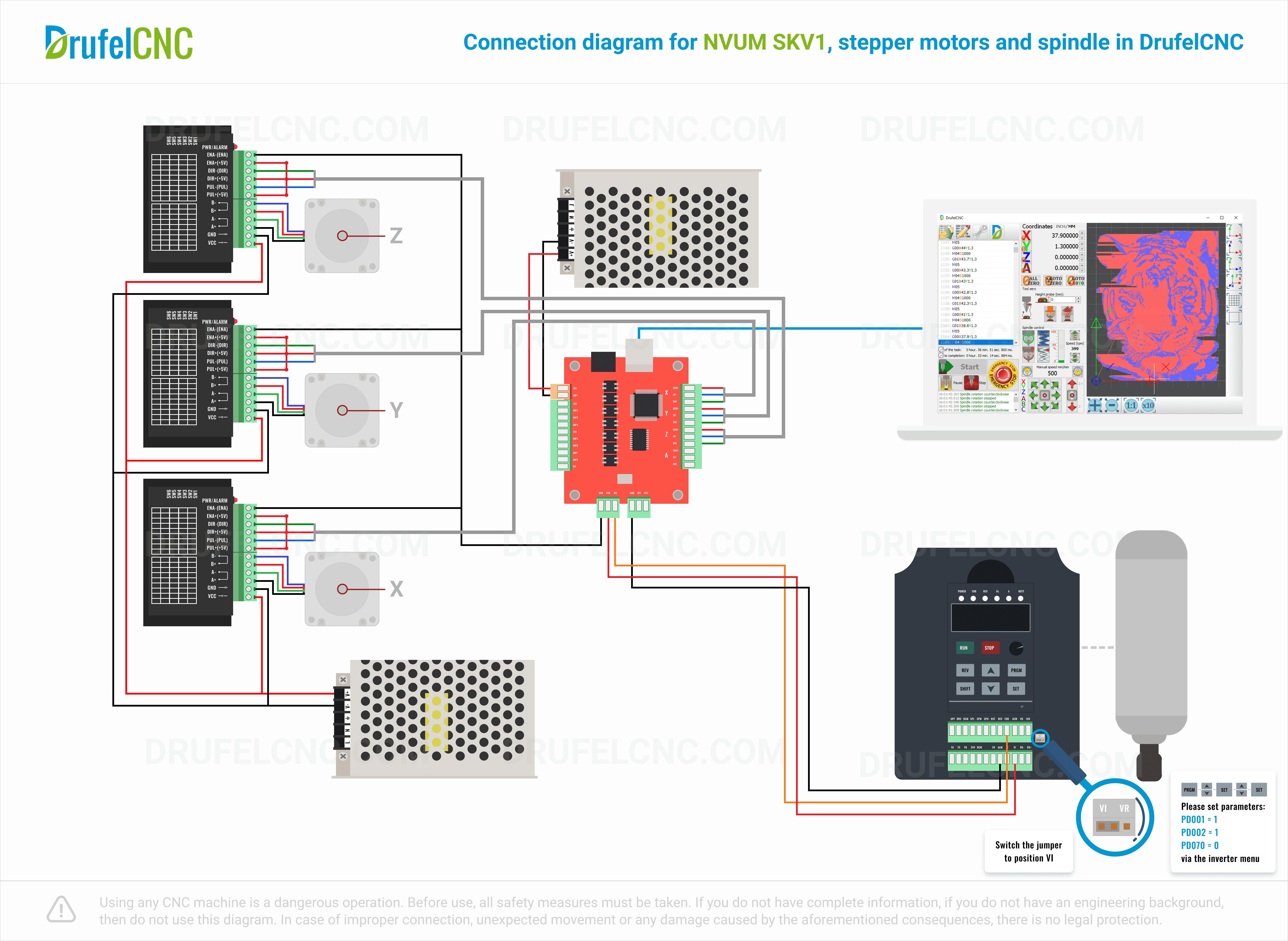

Connection diagram stepper motors and spindle

Base diagram

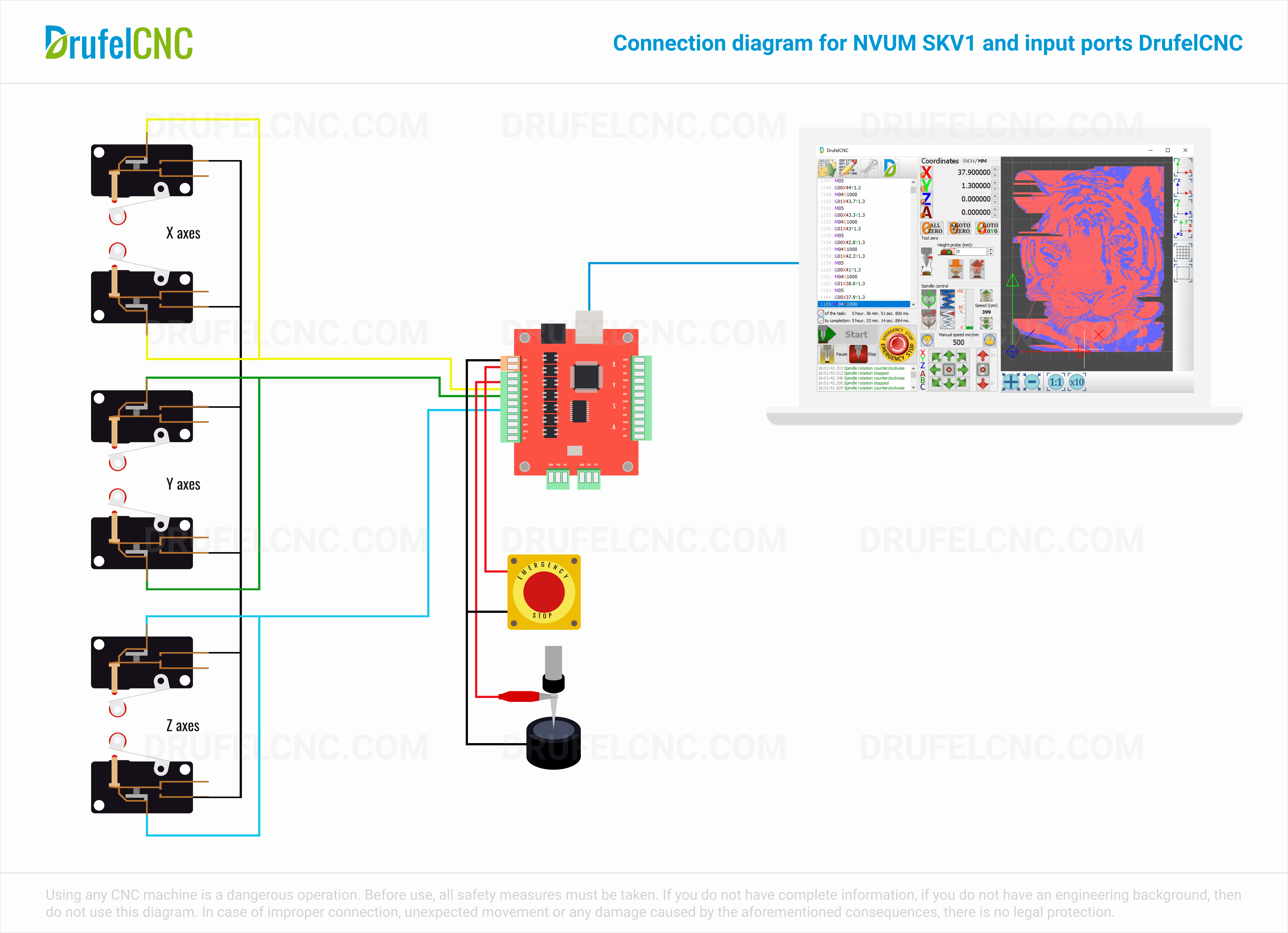

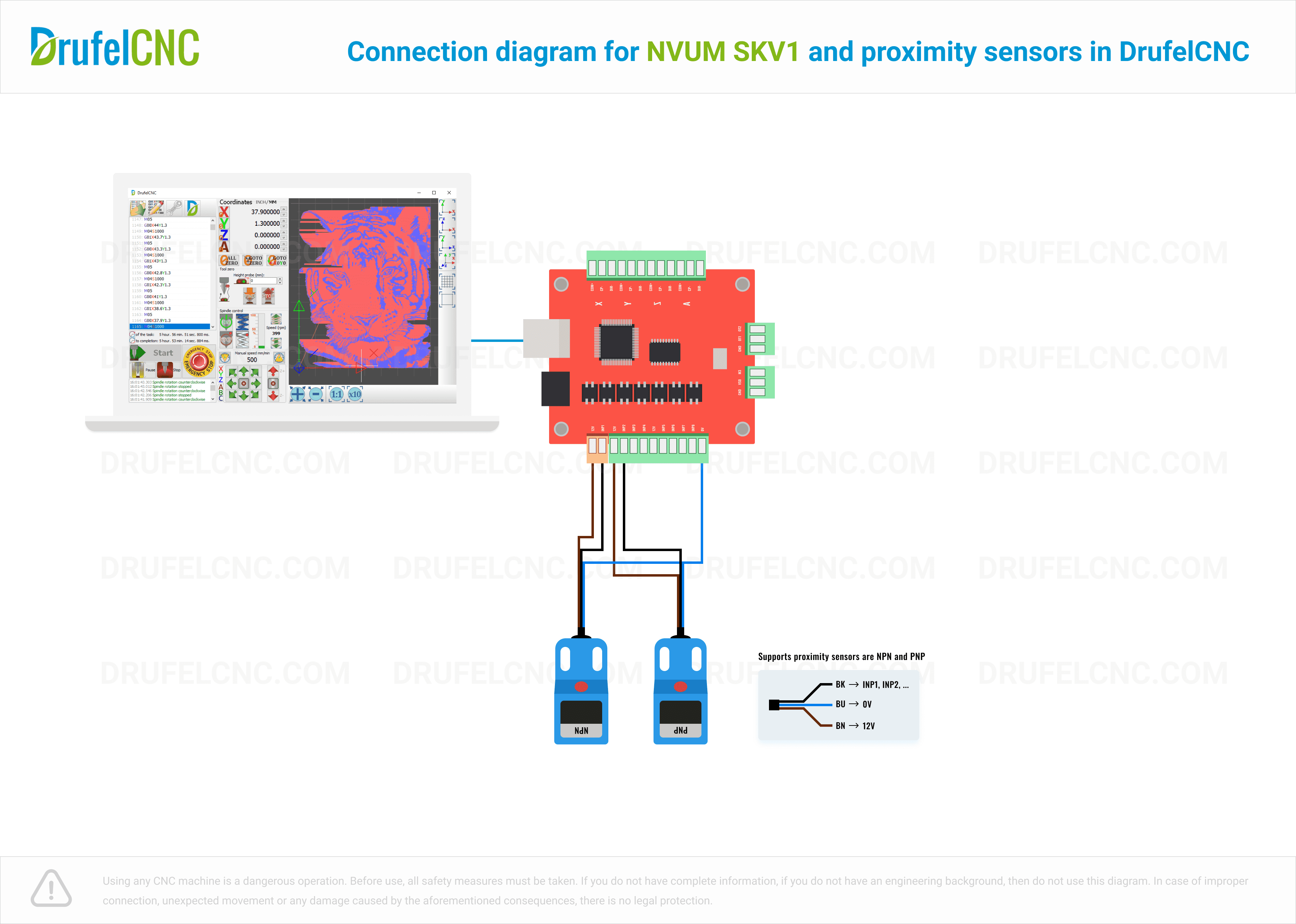

Connection diagram input ports

Connection diagram MPG

Video
