STB5100 USB Motion Card

  • Support for CNC controlled 5-Axis, can connect five stepper motor drivers or servo drives.

  • The power of control card: voltage 12-24VDC, current more than 500MA.

  • The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency.

  • Support for the operating system Windows XP, Windows 7 (32 / 64bit), Windows 8, Windows 10.

  • Applicable to all versions of DrufelCNC software.

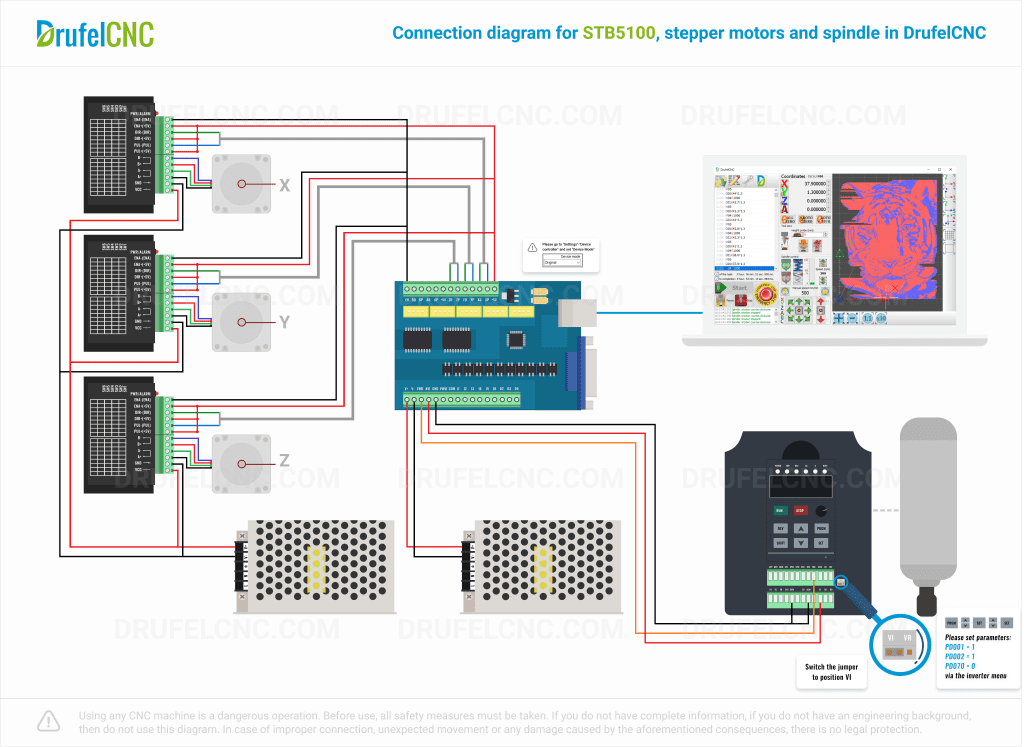

Connection diagram stepper motors and spindle

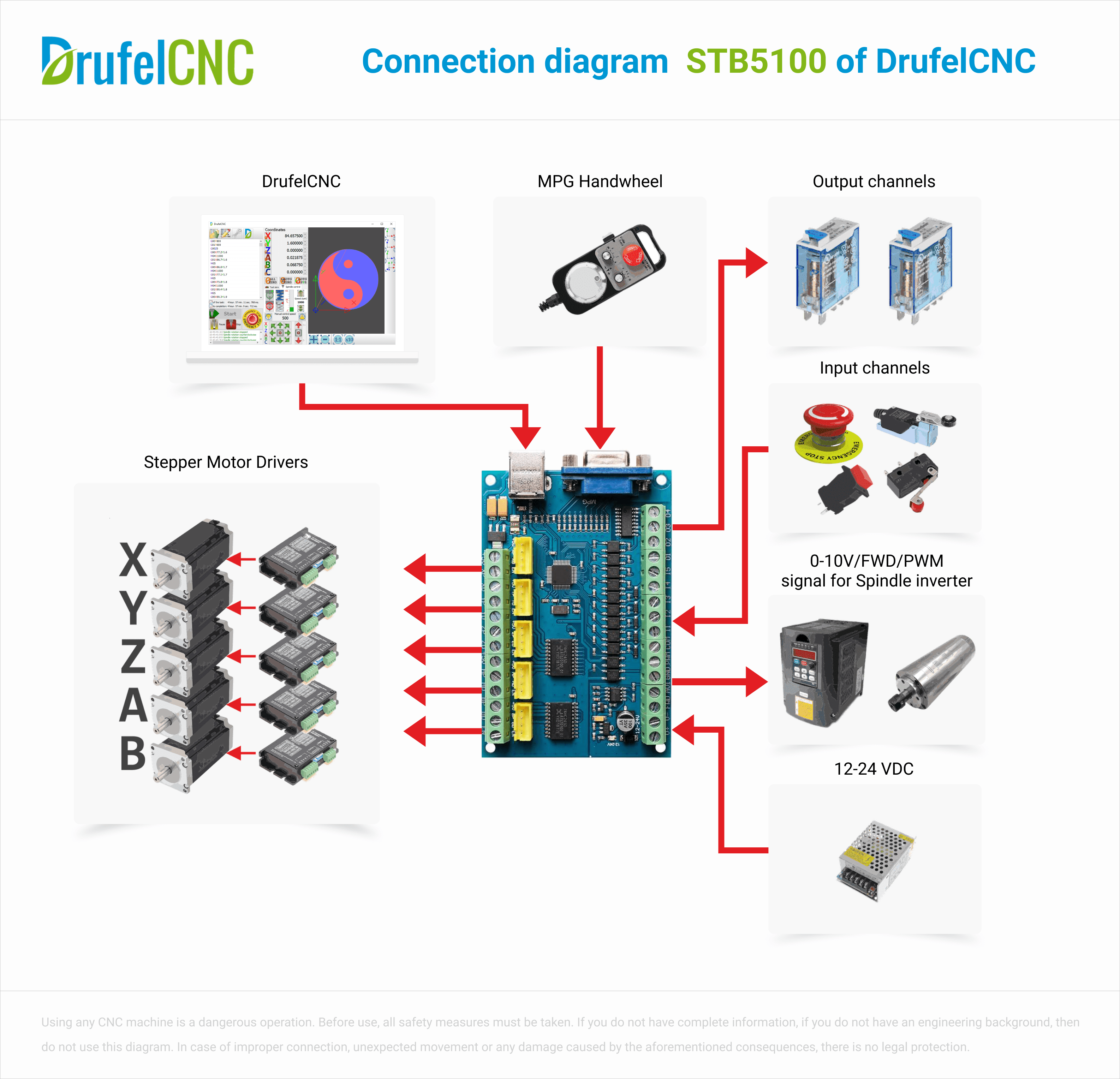

Base diagram

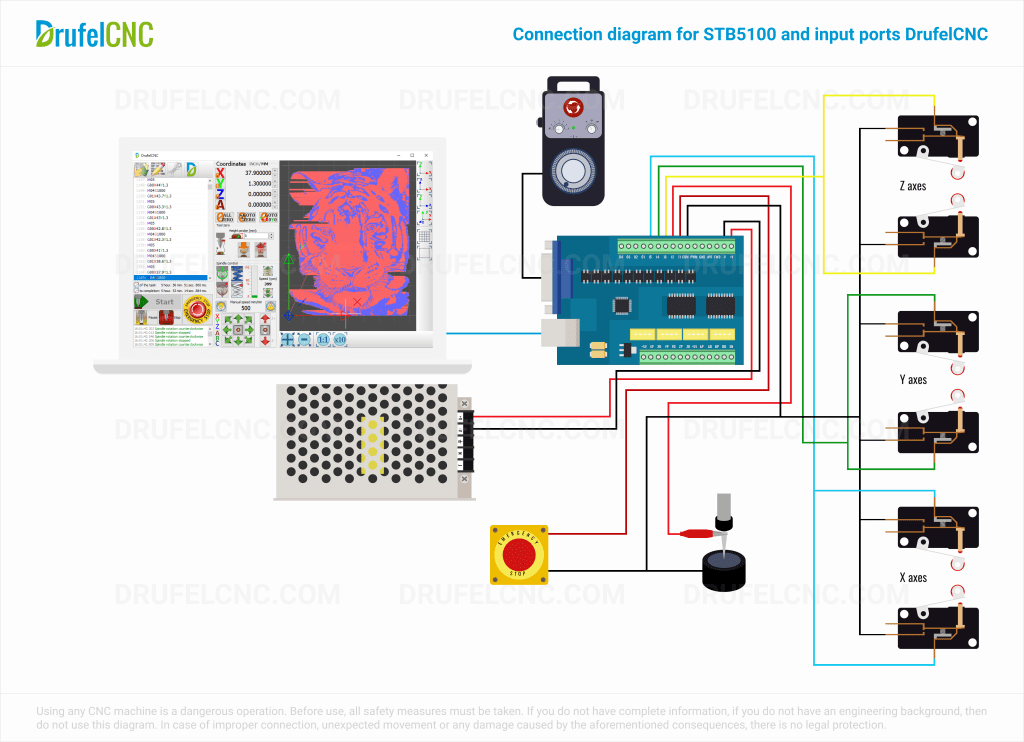

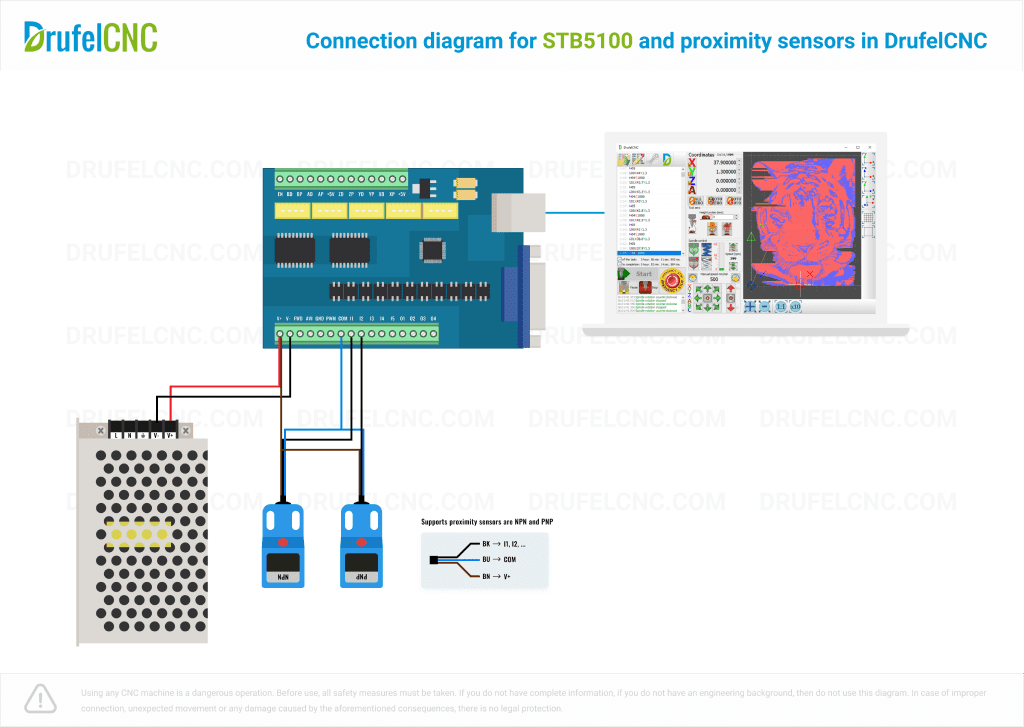

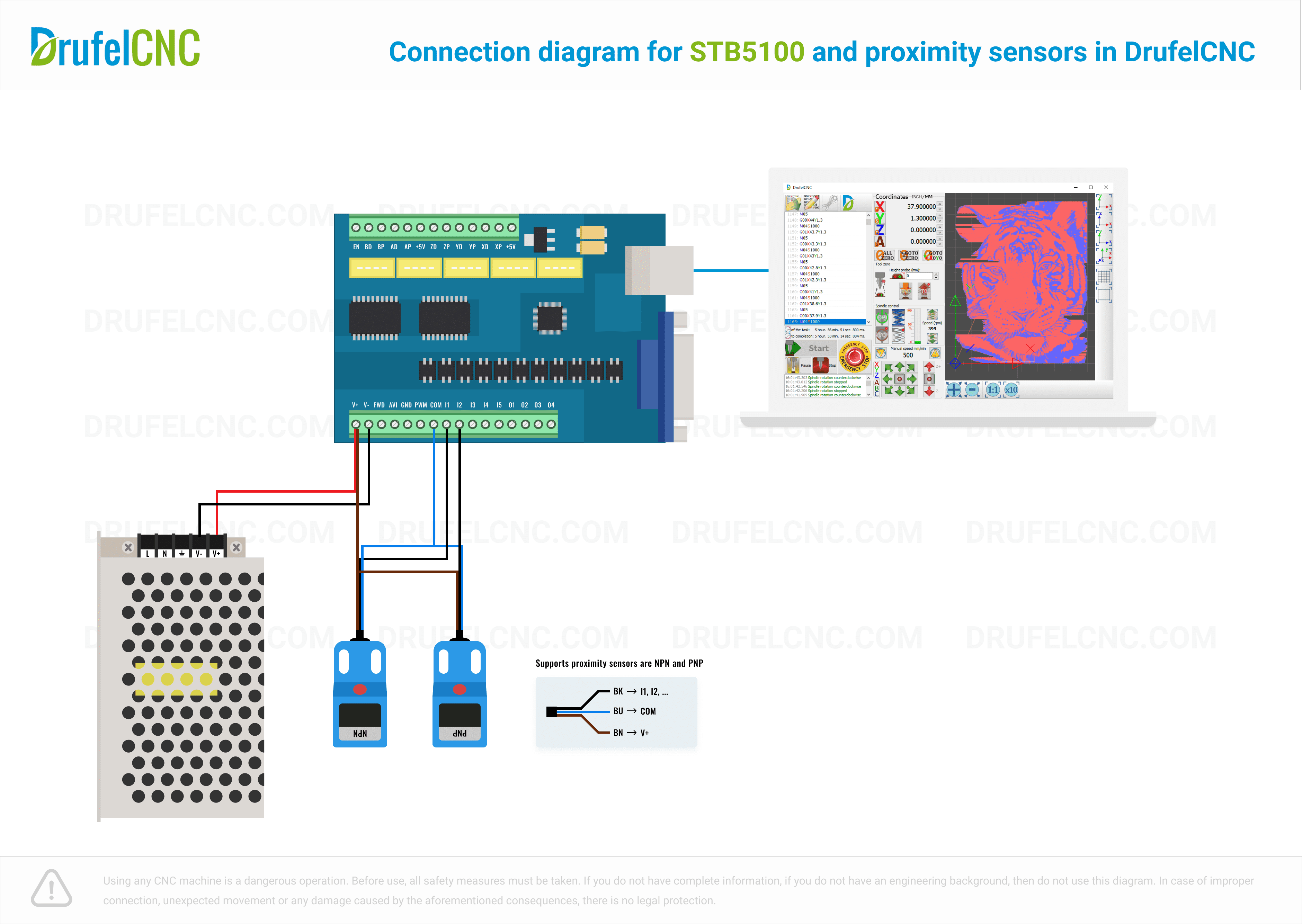

Connection diagram input ports

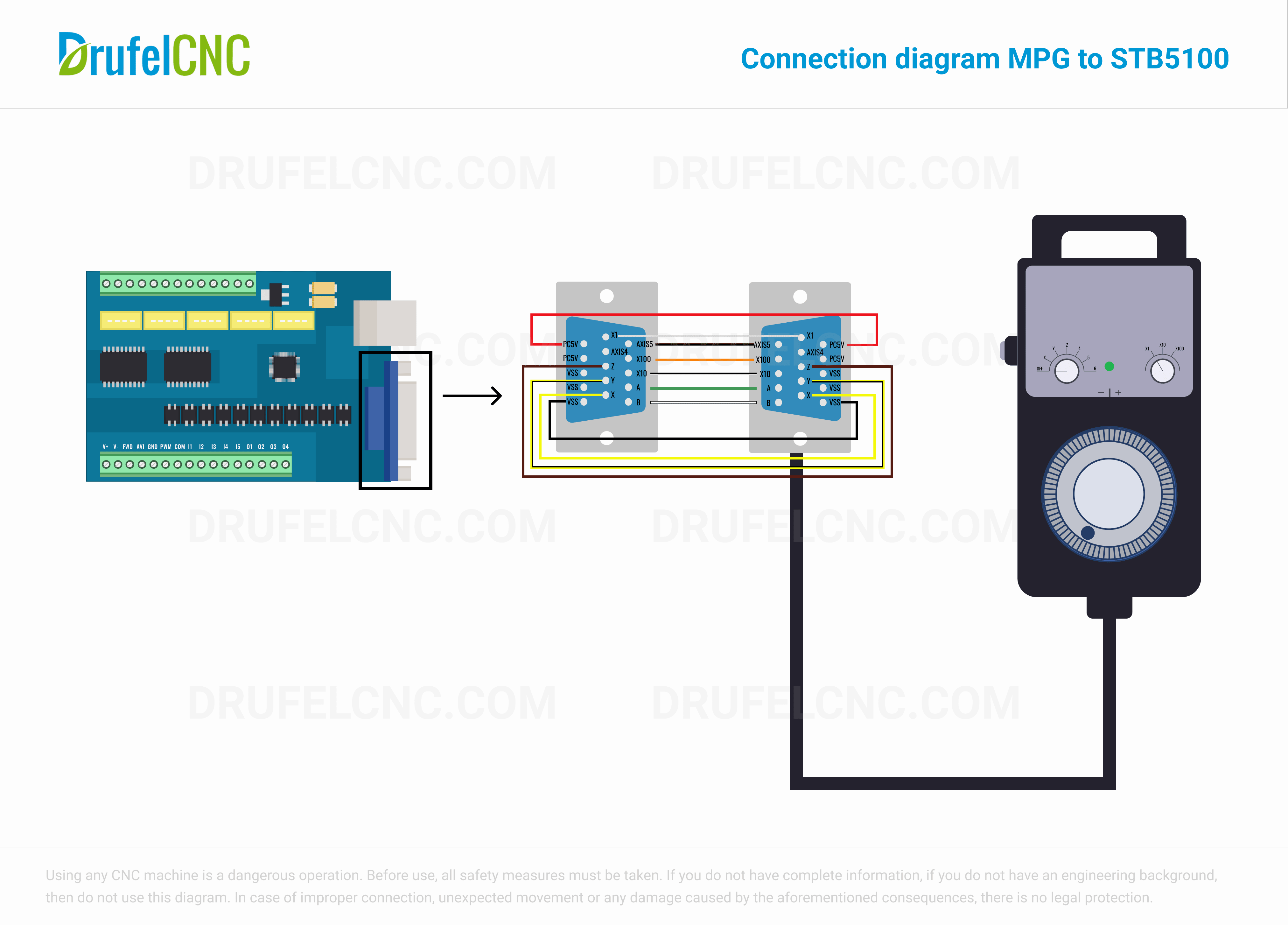

Connection diagram MPG
