UC300 Novusun

  • Motion control 3-6 Axis (X, Y, Z, A, B, C) for option, max frequency output 300 KHz/Axis.

  • Main power supply 24VDC, Current should higher than 1A.

  • IO Power is 24VDC power supply input, current should higher than 1A.

  • 12 opto-isolated digital input ports.

  • 10 opto-isolated digital output ports.

  • Applicable to all versions of DrufelCNC software.

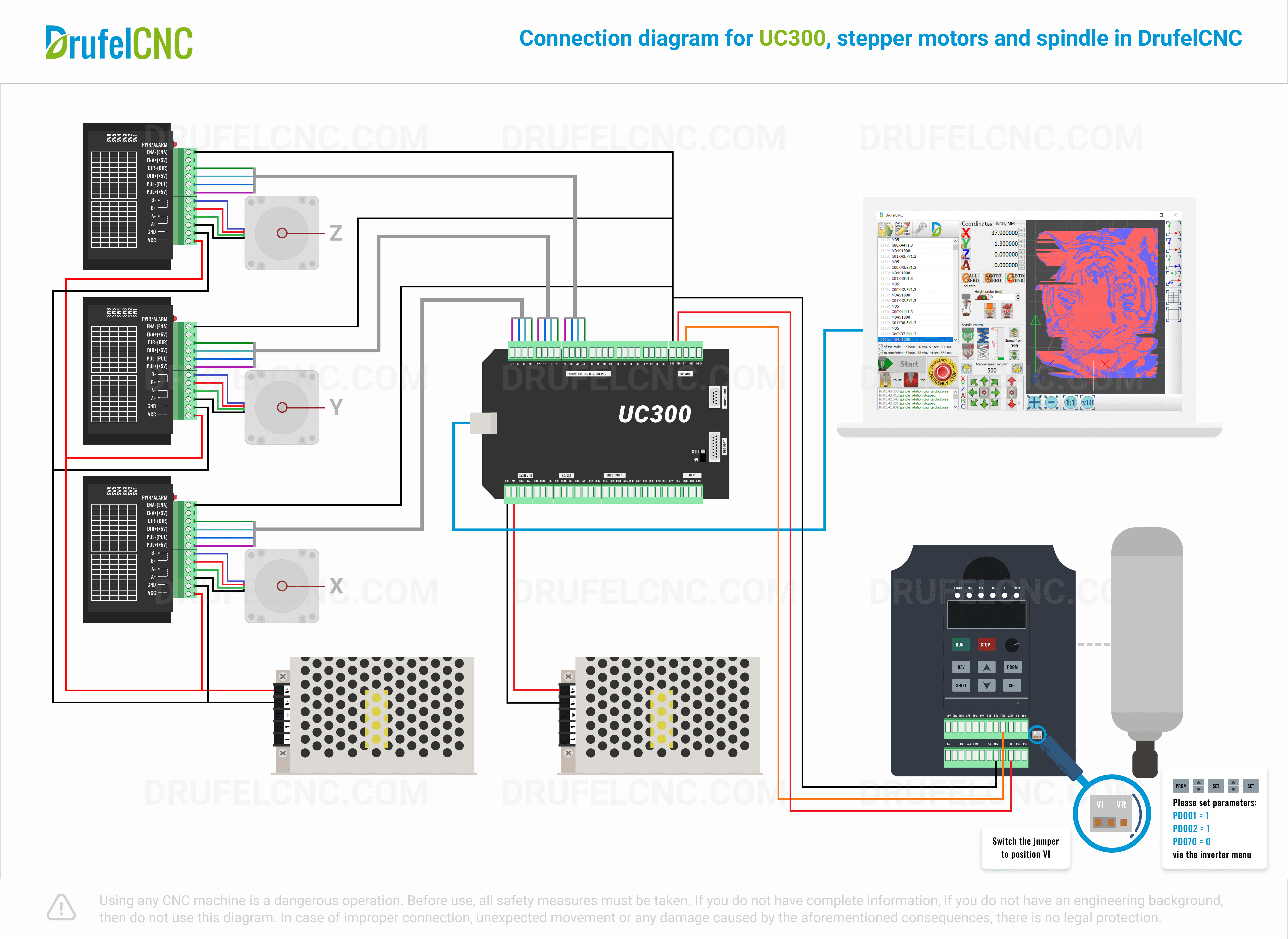

Connection diagram stepper motors and spindle

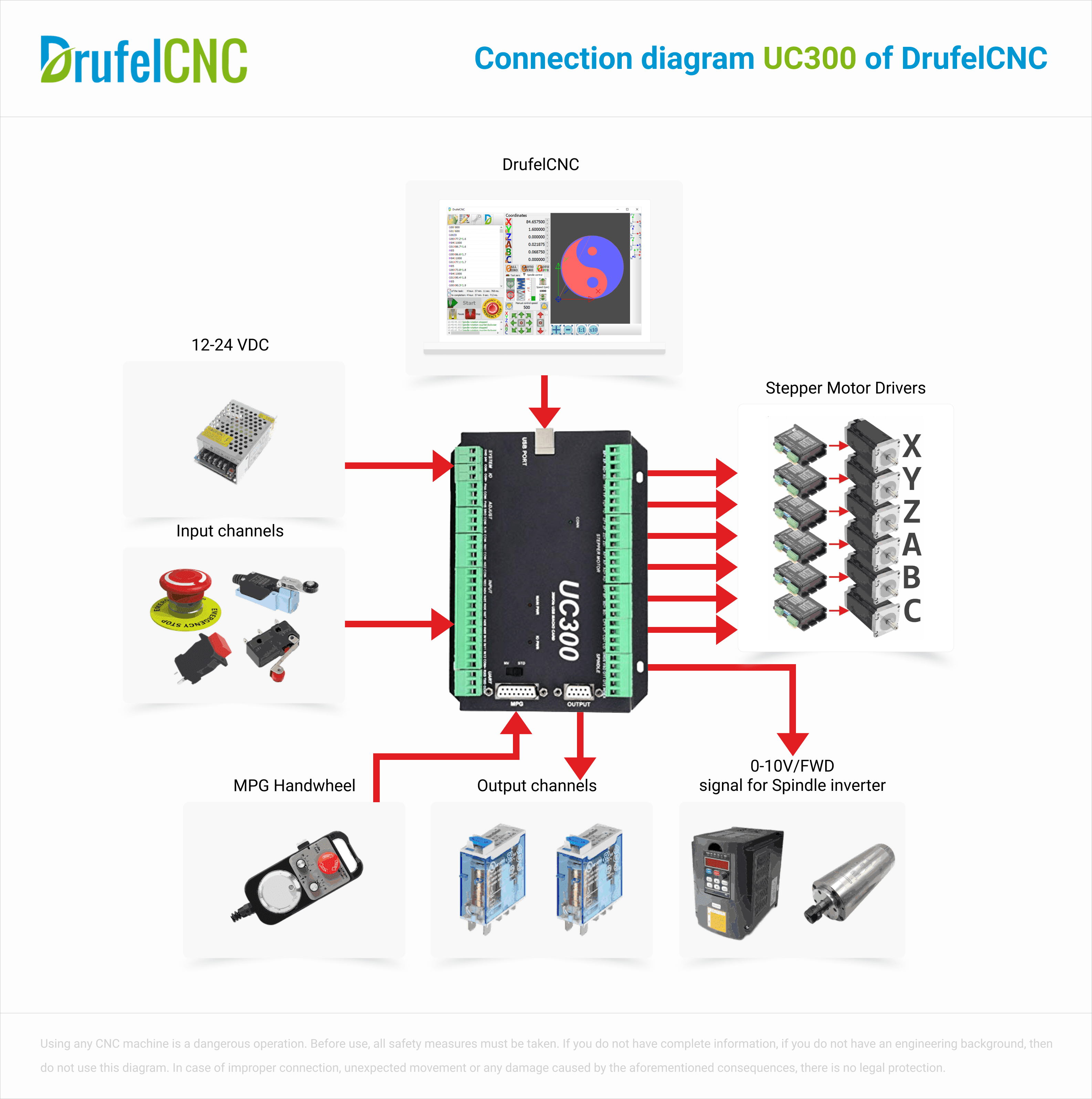

Base diagram

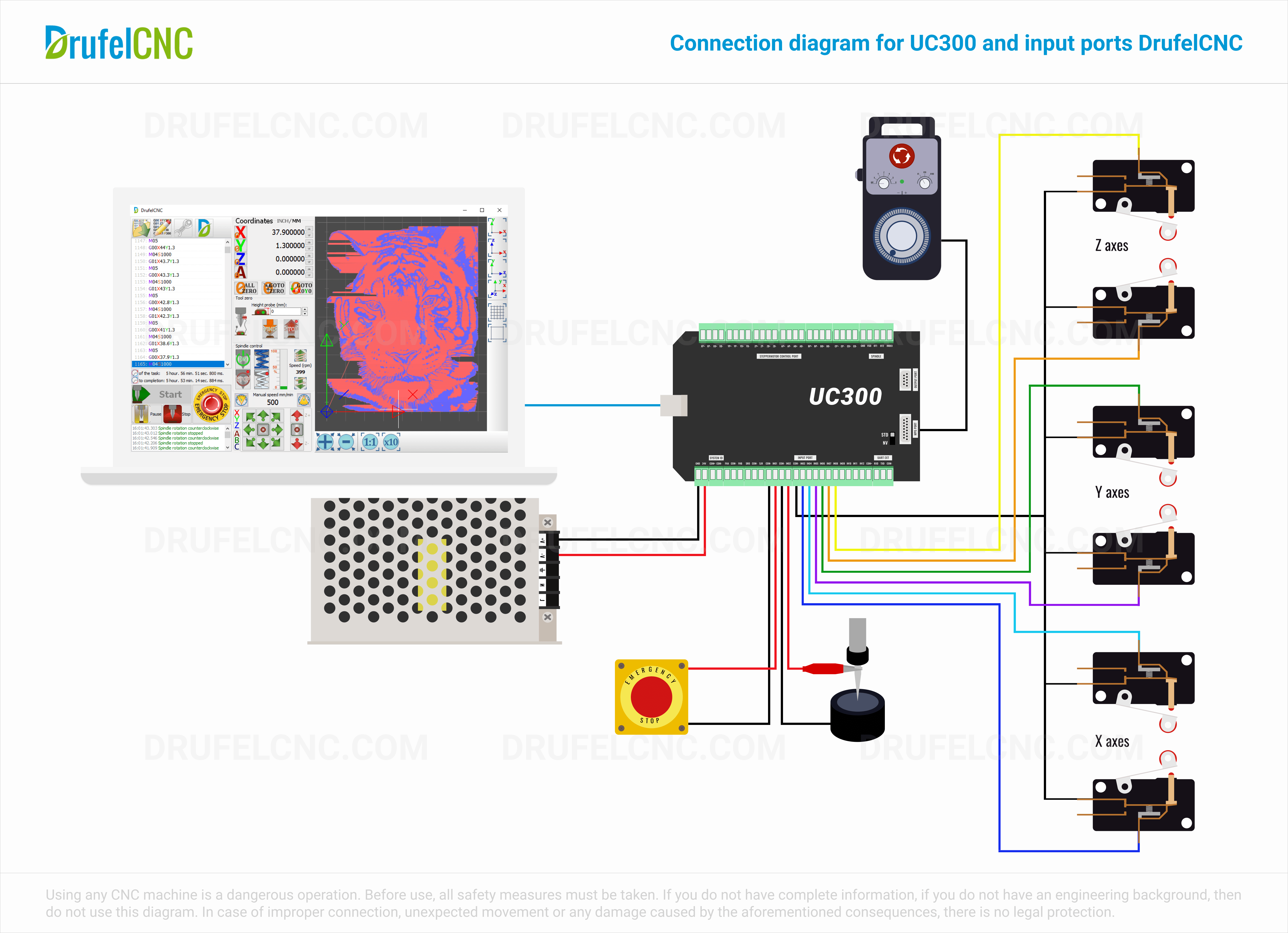

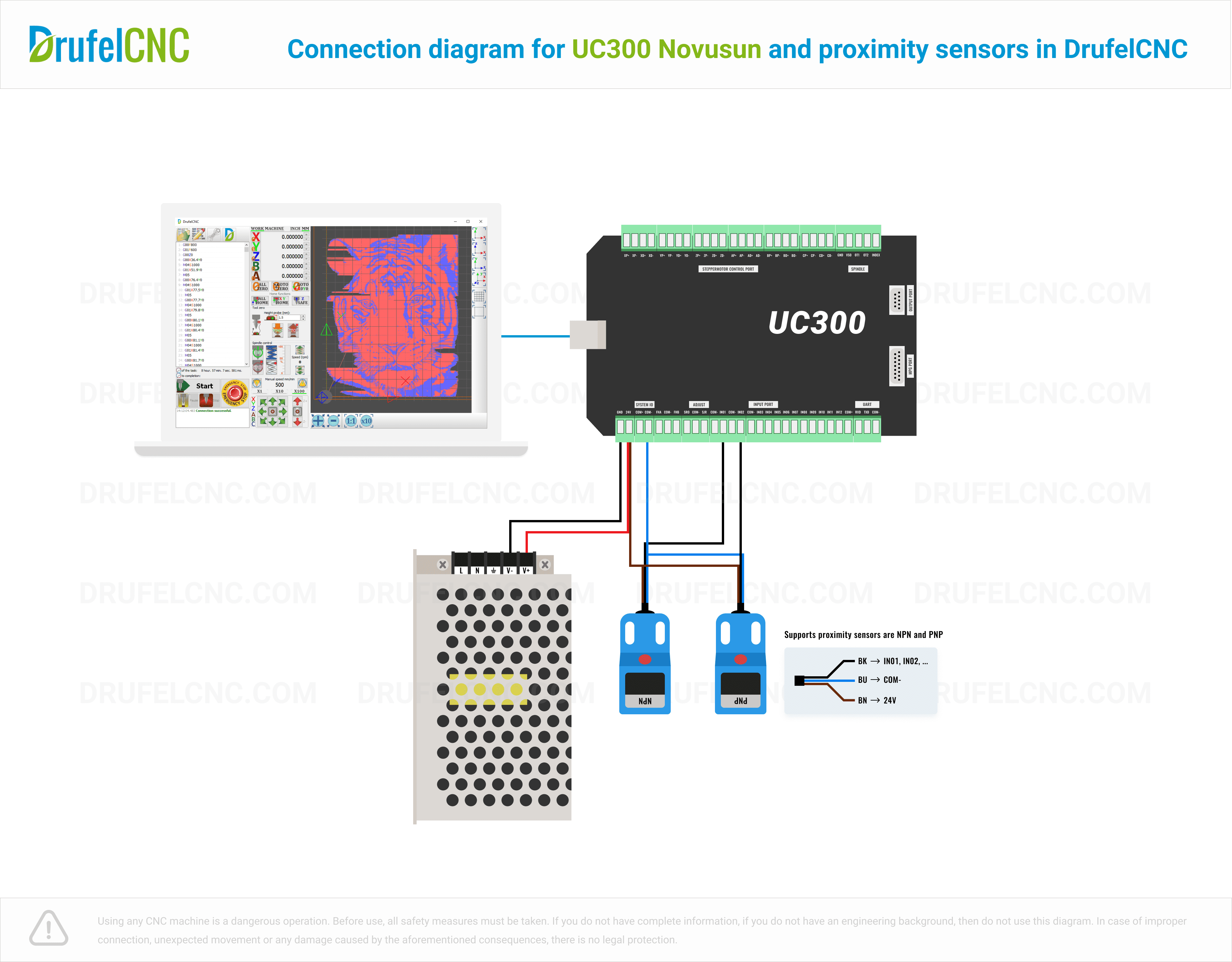

Connection diagram input ports

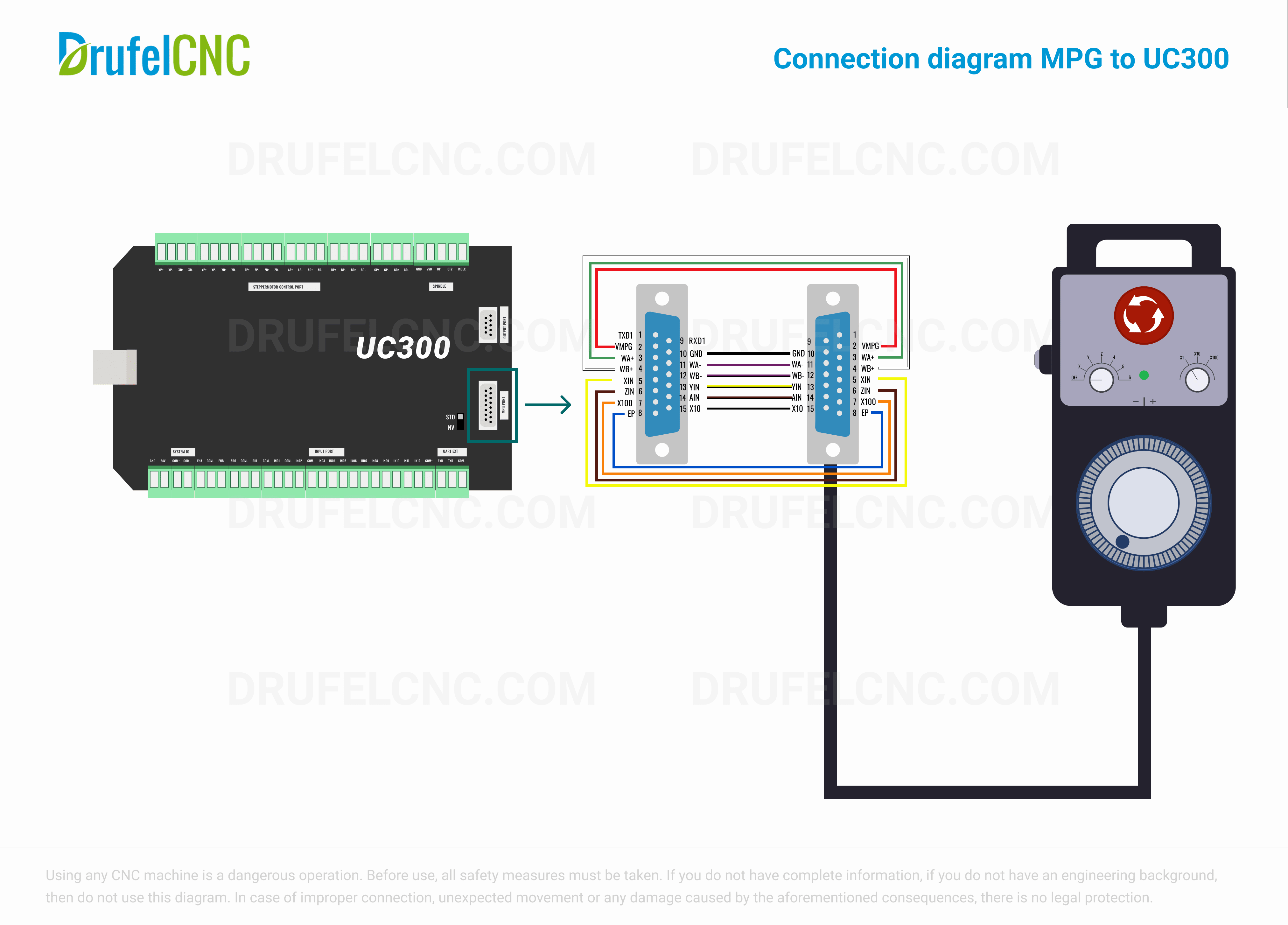

Connection diagram MPG
