USB 8727T4

  • Support 4-axis CNC control.

  • 5 ports photoelectric isolated input interface.

  • 1 ports photoelectric isolated output interface.

  • 1 port 0-10V spindle speed analog output interface.

  • 2 relay output.

  • Applicable to all versions of DrufelCNC software.

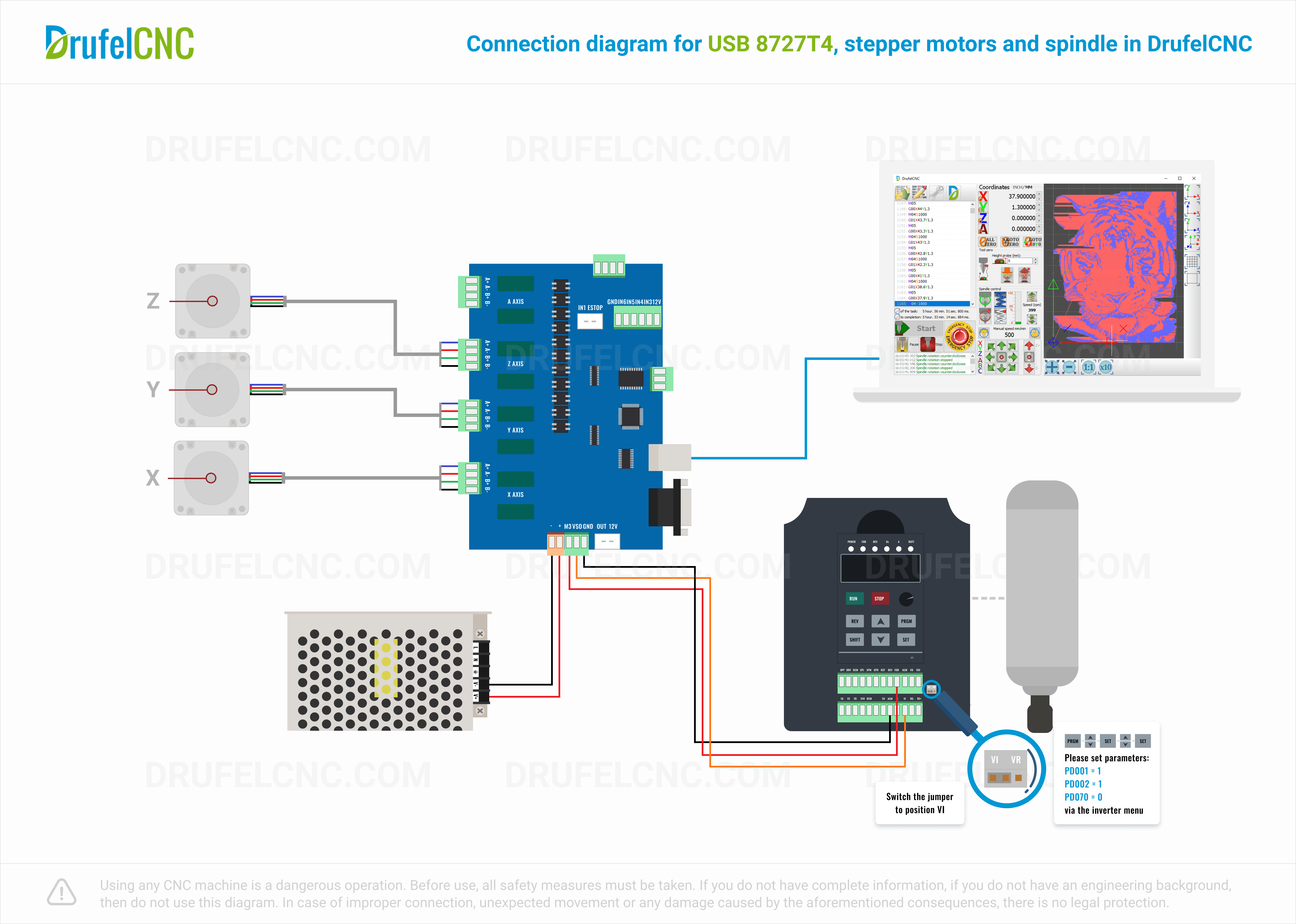

Connection diagram stepper motors and spindle

Base diagram

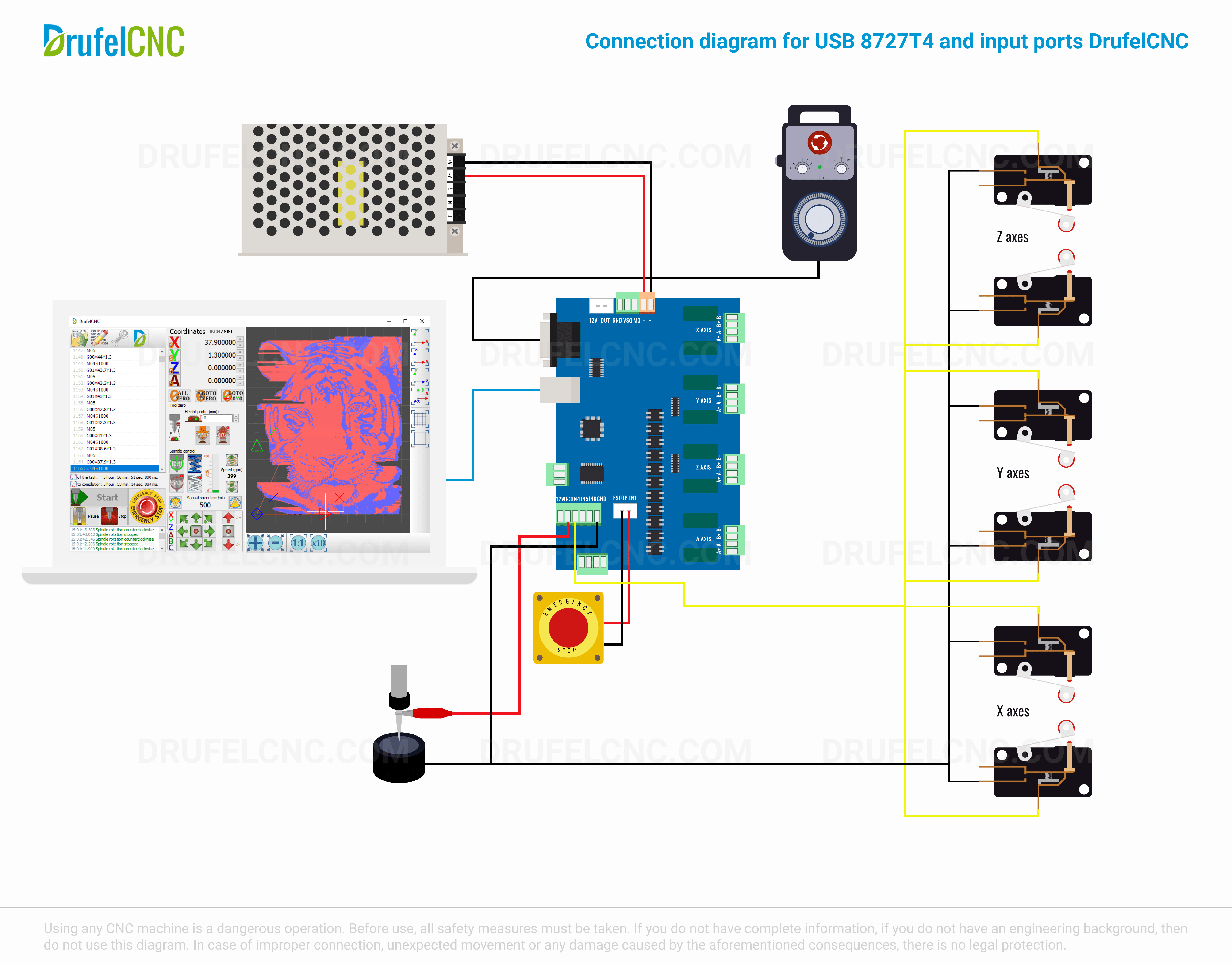

Connection diagram input ports

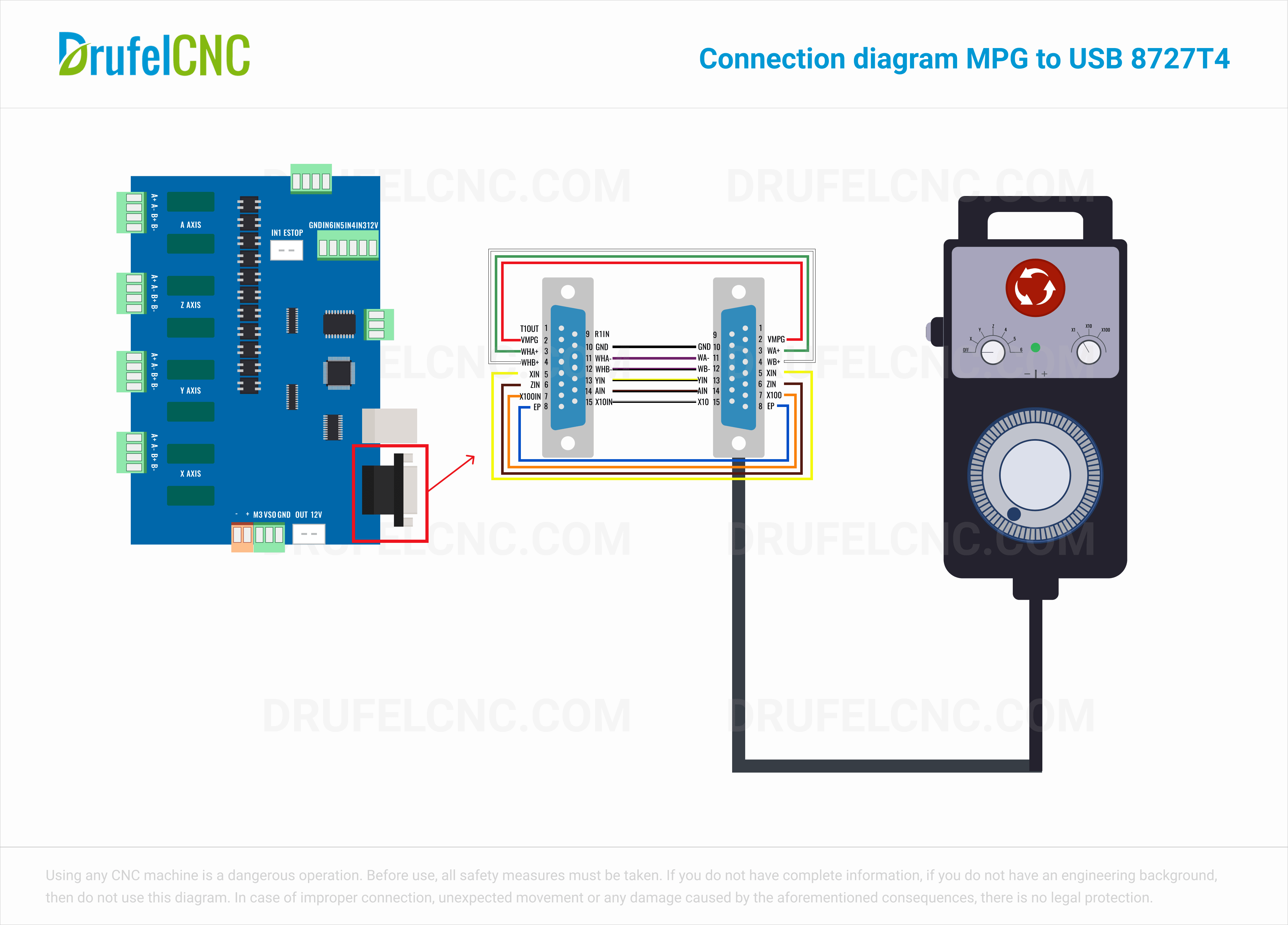

Connection diagram MPG
