Applicable to all versions of DrufelCNC software and support for Windows XP, Windows 7 32/64bit, Windows 8, Windows 10 operating system.
- Support for CNC controlled 4-Axis.

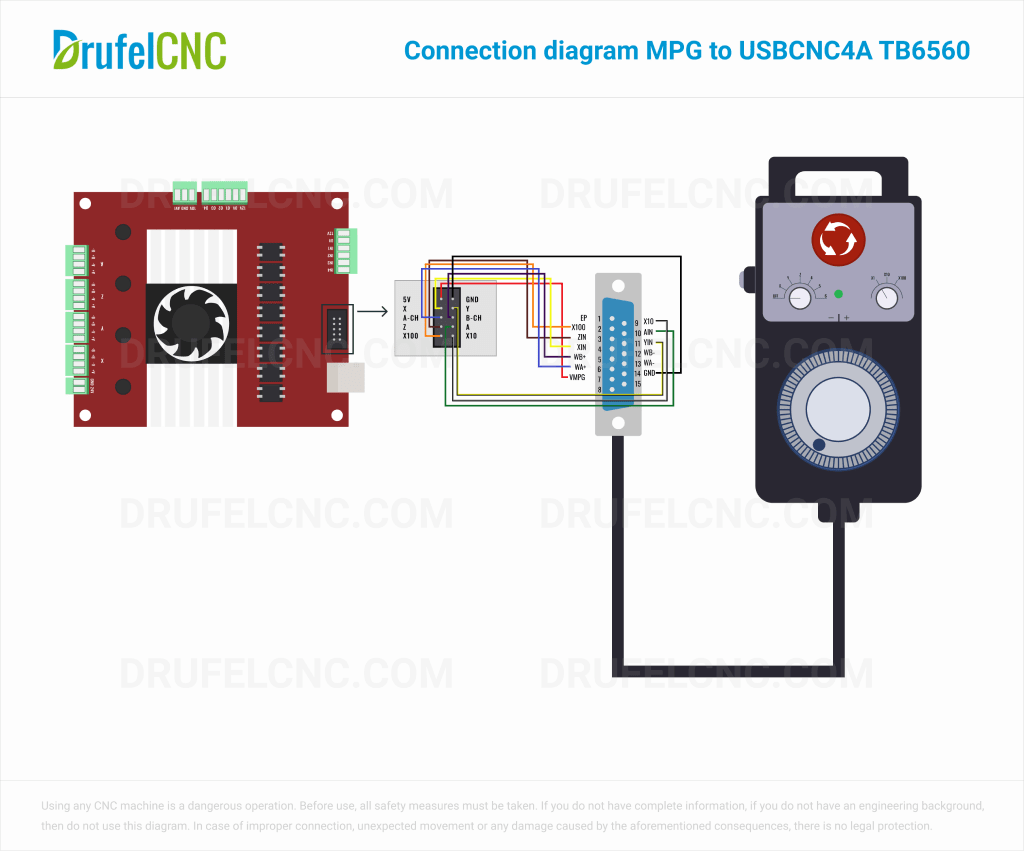

- Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools.
- Add the enable signal interface, can be used to control the driver enable signal; The power of control card: voltage 12-24VDC, current more than 500MA.
- The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency.
Download user manual for cnc usb motion controller USBCNC4A_TB6560.
If you want us to support your controller, let us know! Fill out the feedback form.
