USBCNC5A

  • Support 5-axis CNC control.

  • Power of the control board: voltage 12-24 V DC, current more than 500 mA.

  • Support for external connect electronic handwheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools.

  • Support for the operating system Windows XP, Windows 7 (32 / 64bit), Windows 8, Windows 10.

  • Applicable to all versions of DrufelCNC software.

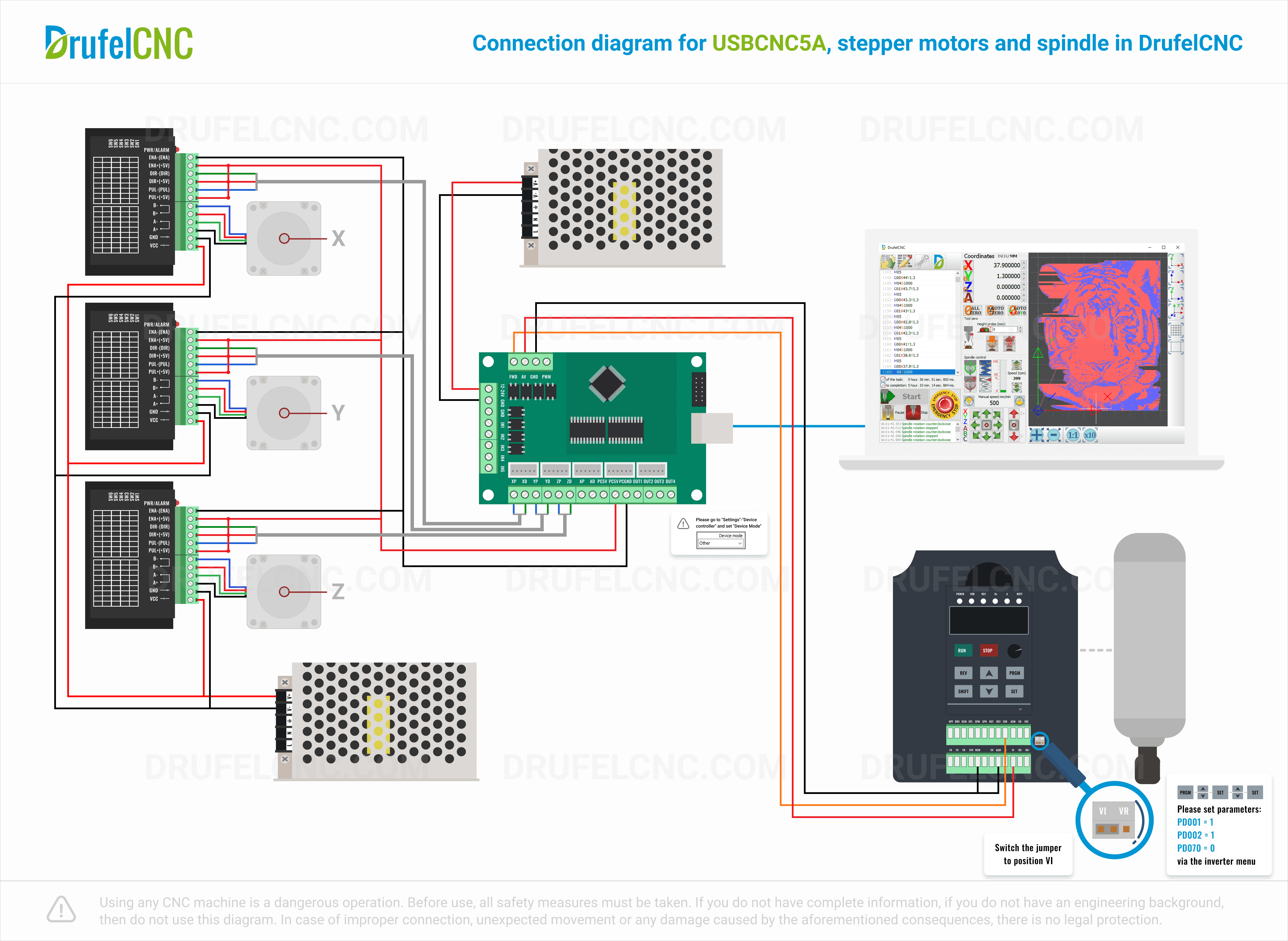

Connection diagram stepper motors and spindle

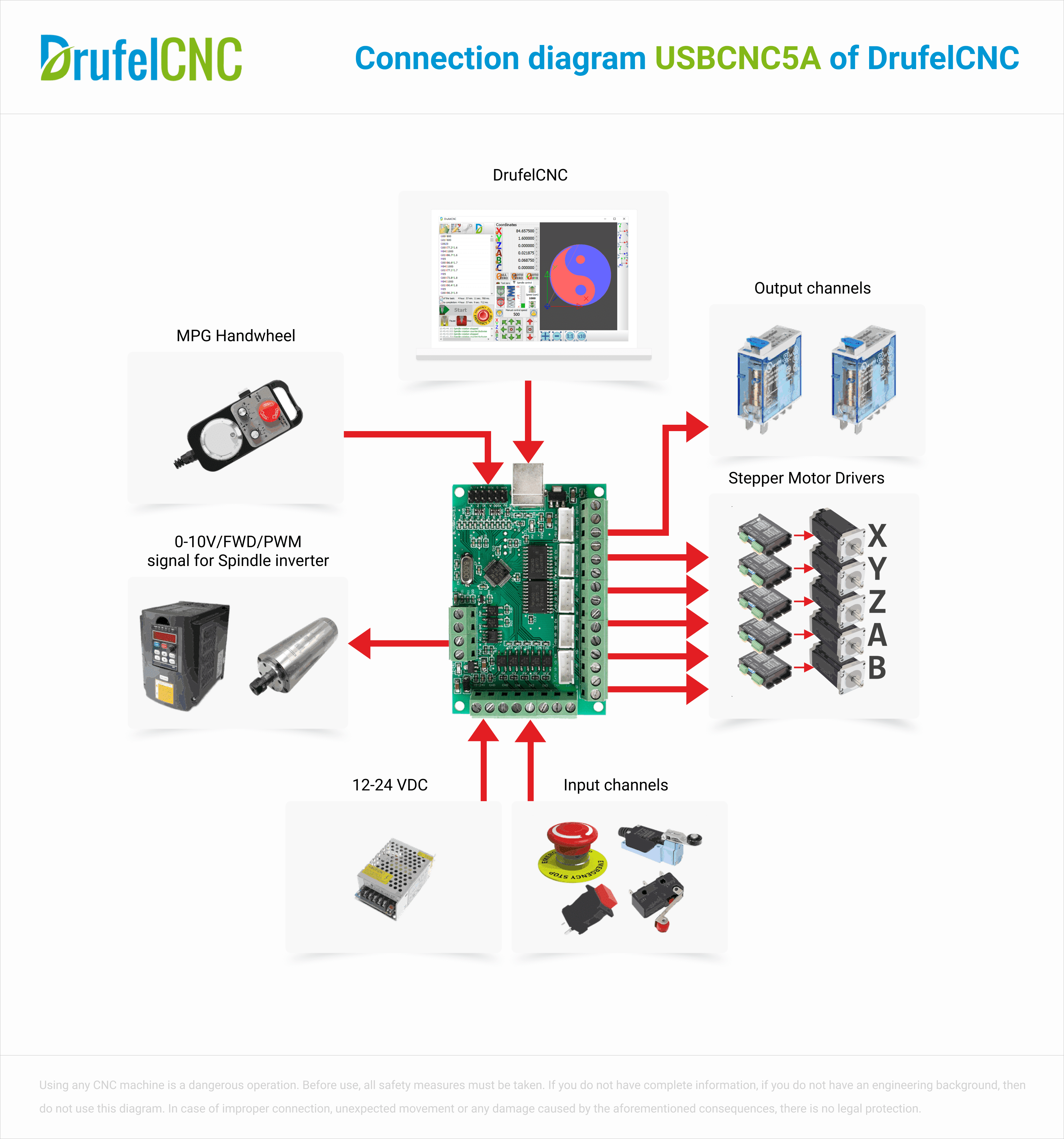

Base diagram

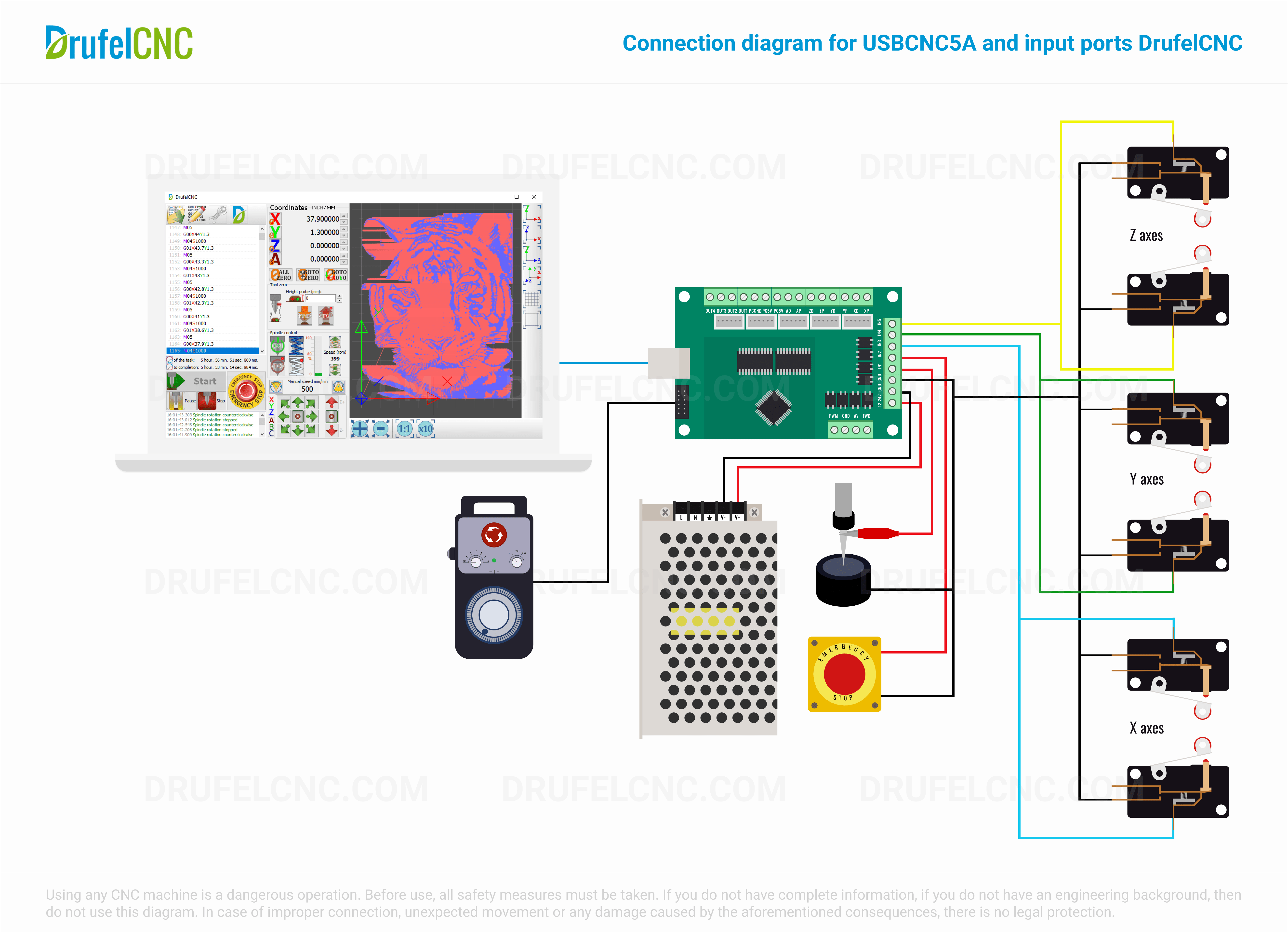

Connection diagram input ports

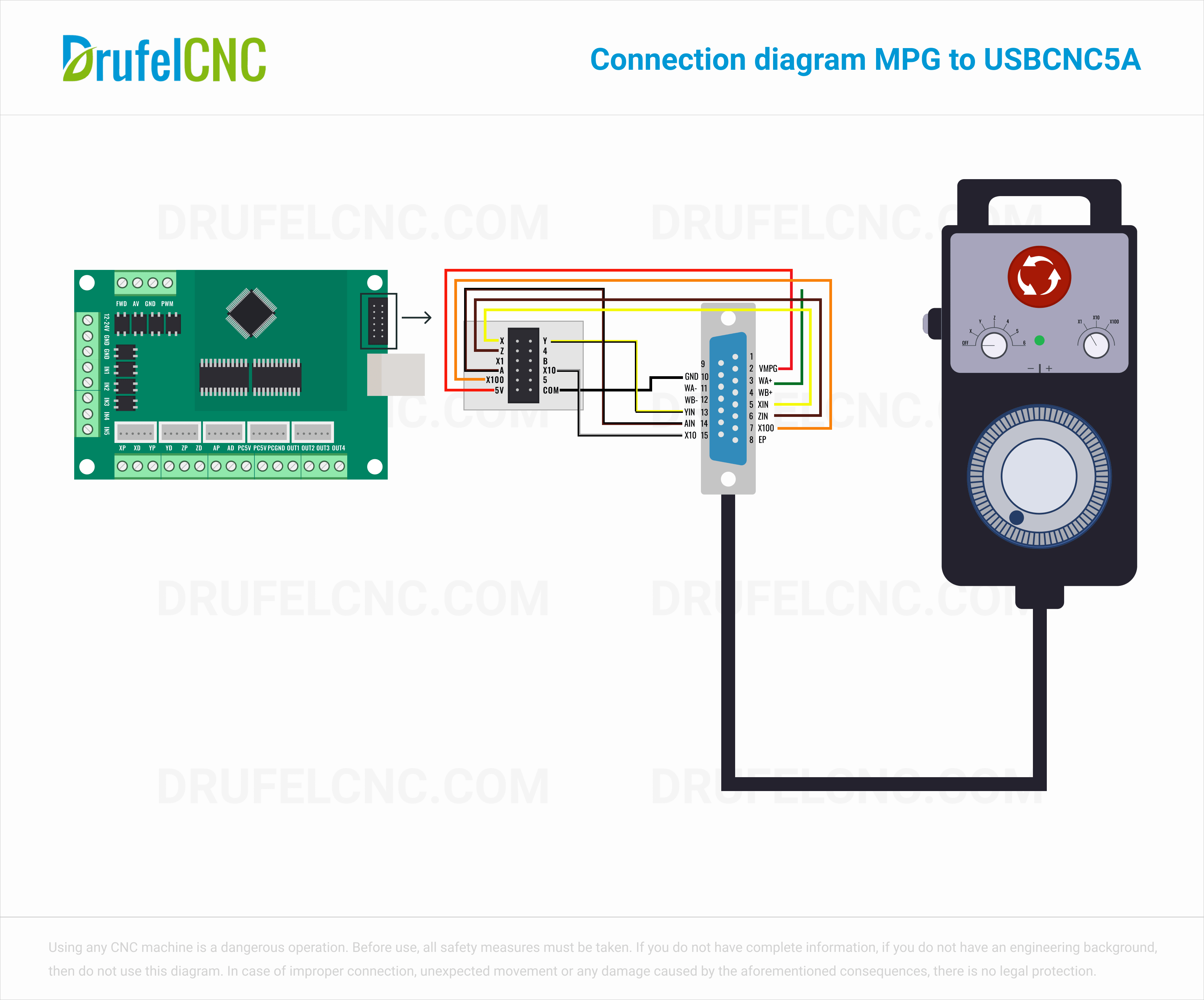

Connection diagram MPG
