4.1. Common

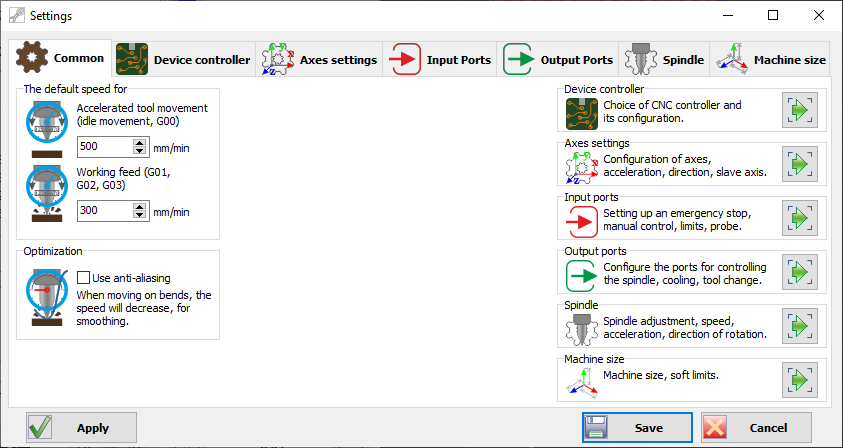

In the common tab, you can set values for accelerated tooth movement (idle movement, G00), working feed (G01, G02, G03) and use anti-aliasing.

	Default speed for G00 commands. If no speed for G00 is specified in the G code file, then G00 commands will use that speed.
	Default speed for G01, G02, G03 commands.
	When moving along curved vectors, the speed of movement will decrease.
