11. Opening HPGL files

To open files in HPGL format, you must click on the button with the image of the folder , then select the file.

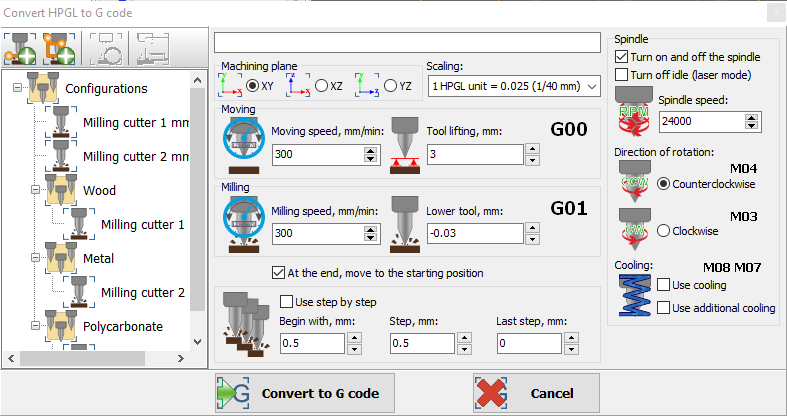

In the window that opens, you must select the parameters for converting HPGL to G-code. After successful conversion, you will see a three-dimensional model of the file.
