12. Generating a G-code from an image

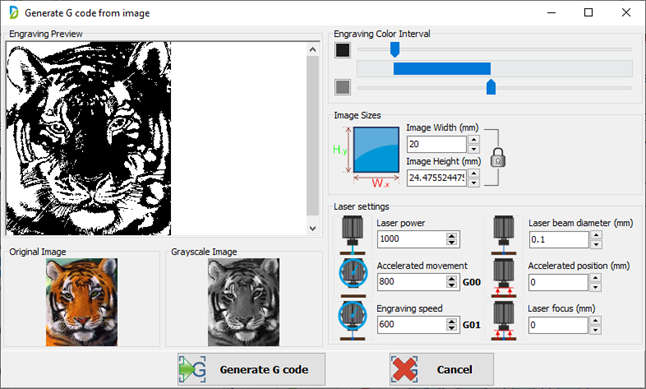

To open a file in the format (png, jpeg, gif, bmp), you must click on the button with the image of the folder , or select the necessary file and transfer it to the G-code field. In the window that opens, you must select the options for converting the image into a G-code.
In the engraving color interval block, you can adjust the color interval. In the Image Sizes block, you can adjust the image size.

	Proportional image resizing.
	Not proportional image resizing.

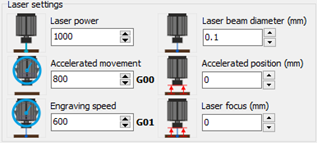

In the Laser Settings block, you can configure the laser settings.

	Laser power setting
	Accelerated motion setting (G00)
	Engraving speed setting
	Laser beam diameter adjustment (mm)
	Accelerated position adjustment (mm)
	Laser focus adjustment
