4.4.2. Hot keys

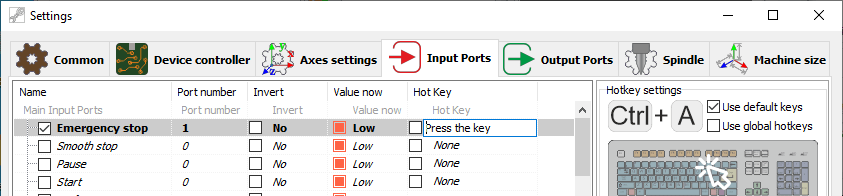

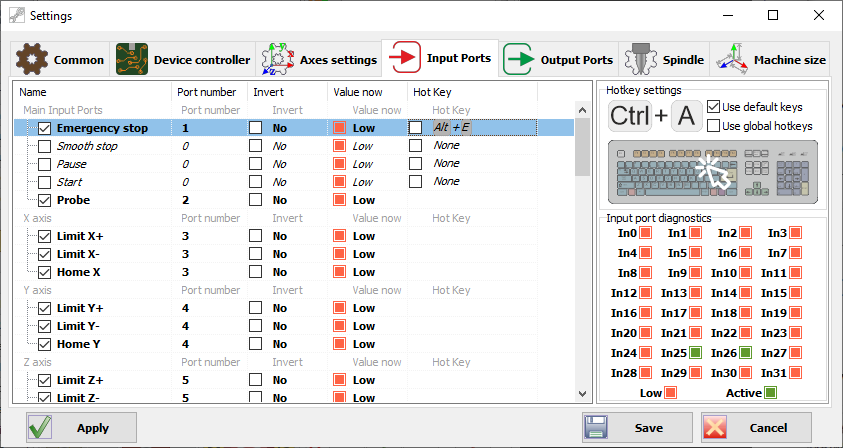

In order to set your hot keys, you need to click on the Hot Key column of a specific input port.


Next in this field you must specify your keyboard shortcut that you want to use.


«Use global hotkeys» - this function in which if the DrufelCNC window is not active, then hotkeys will still go to DrufelCNC.

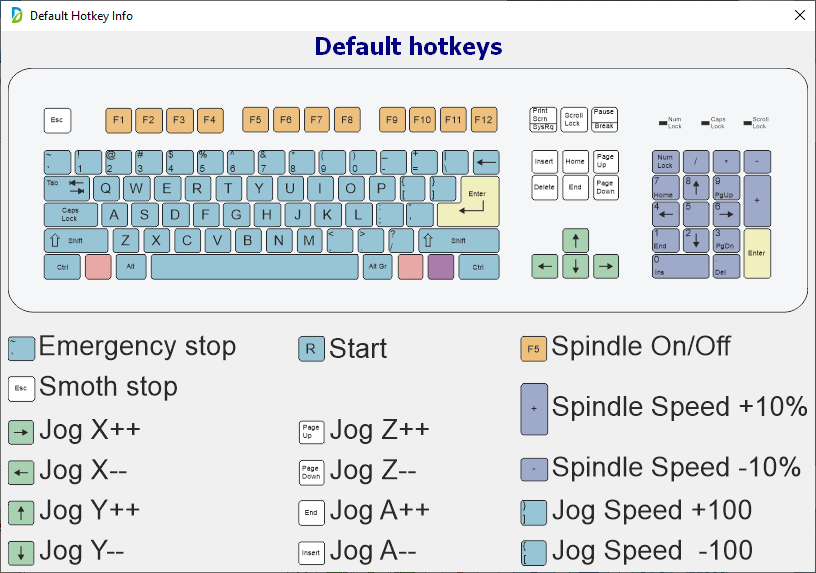

«Use default hotkeys» - this function for hotkeys will work according to the following list:


Attention! Custom shortcuts take precedence over the default keys.
