6. Search tool zero

To begin searching for a tool zero, set the height of the probe used. Next, click . Wait until the end of the process. First you need to configure the input port number for the probe. The Z axis is assigned according to the value found and the height of the probe. After completing the tool zero search, the tool will return to its original position.
To cancel the tool zero search, click .

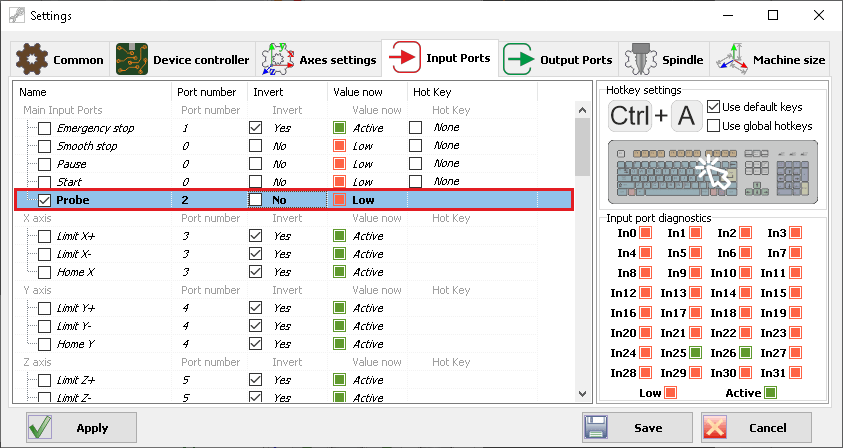

For the tool zero search to work correctly, you must set the input port number in accordance with the port number on the controller where your probe is connected. Set "Invert" so that the "Value now" in the normal state of the Probe is "Low".
