4.7.1. Size axis

Set the min / max limits for your machine.
Attention! The limits are specified in machine coordinates. The difference between the min and max should be the actual axis length of your machine.

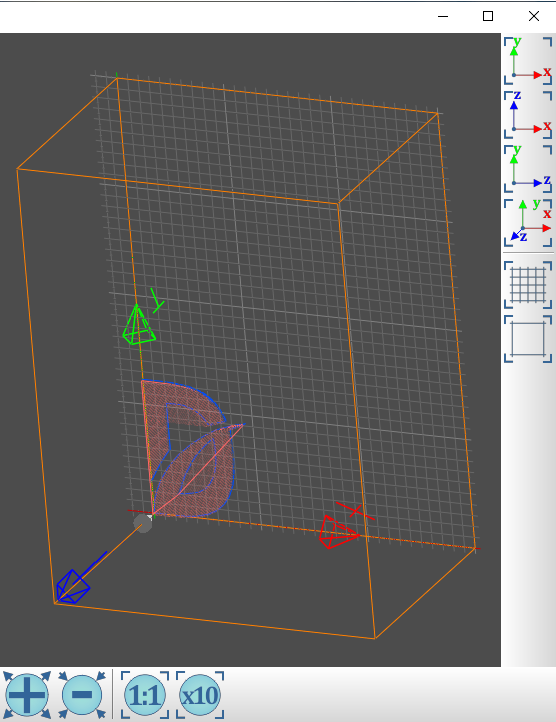

According to these settings in the 3D model window, the dimensions of the axis will be displayed as a quadrilateral in each plane.
