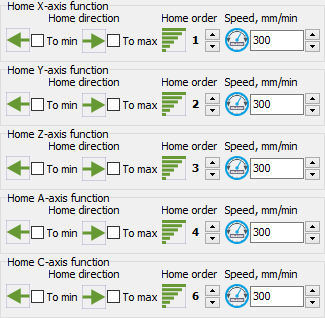

4.7.3. Home function

With these settings you can set the driving direction, priority and speed.

These settings are for buttons on the main window.
To min - when searching for the home position, the instrument will move to the minimum.
To max - when searching for the home position, the instrument will move to the maximum.

Attention! If you have turned on both the “To min” and “To max” settings, then when searching for the home position, the instrument will first move to the minimum and then to the maximum.

Home order - allows you to specify the order in which the search for the home position is performed for each axis.
home order = 1 will be executed very first.
home order = 6 will be executed most recently.

Speed, mm/min is the speed of the tool when searching for the home position.
