10. Display 3D model

The code you downloaded is displayed as a 3D model on the right side of the application window.

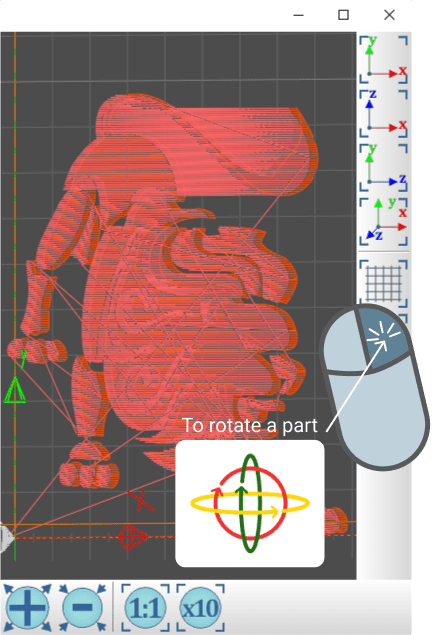

To rotate the 3D model, move the mouse pointer to the display area of the 3D model. Right-click and hold to move the mouse pointer. You can also use additional buttons .
To zoom the 3D model, use the mouse wheel or . To move the model in the plane, use the left mouse button.

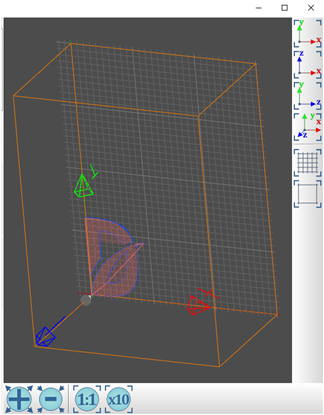

To turn on the grid, click on the button . In order to turn off the grid, click on the button . Grid enabled by default.
You can rotate the model by holding down the right mouse button.
