4.4. Configure Input Ports

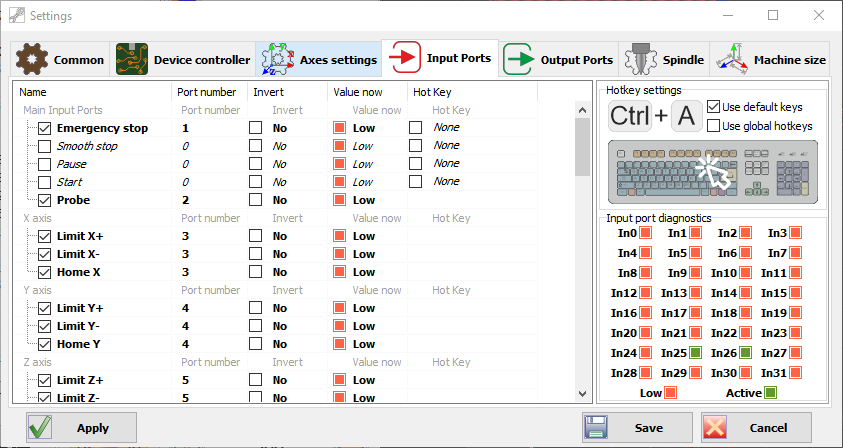

To configure input ports, go to the Input Ports tab.


Set the input port numbers according to the configuration of the machine and the CNC controller. Save the settings.
