Machine Coordinates in DrufelCNC

machine_coordinates

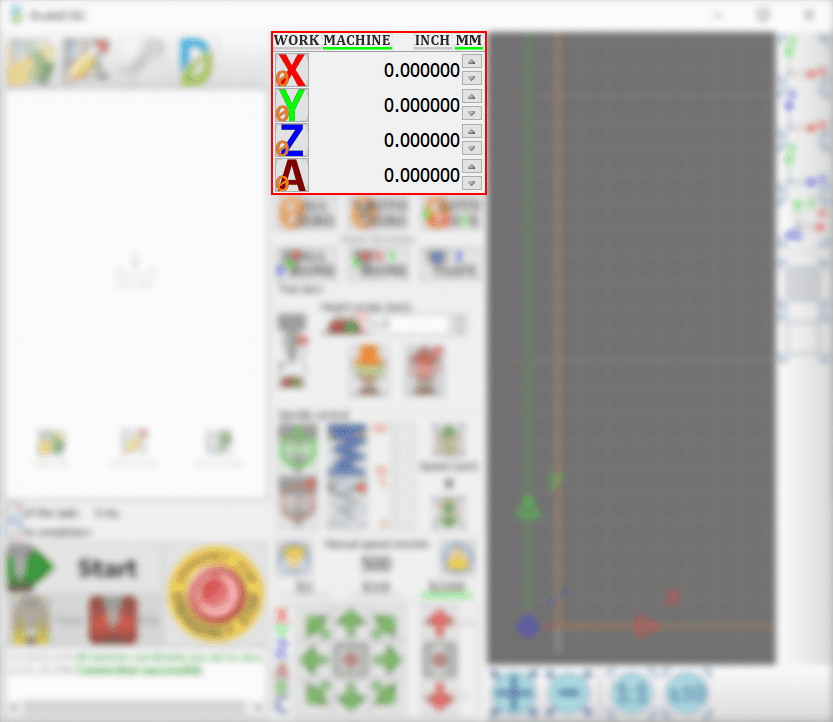

DrufelCNC supports machine coordinates. The window with the value of machine coordinates is located on the main screen.
machine_coordinates
To set "Machine size" you need to:
1. Open DrufelCNC.
2. Click on "Show settings" on the top left corner of the main screen.
3. Go to the "Machine size" tab.
machine_coordinates

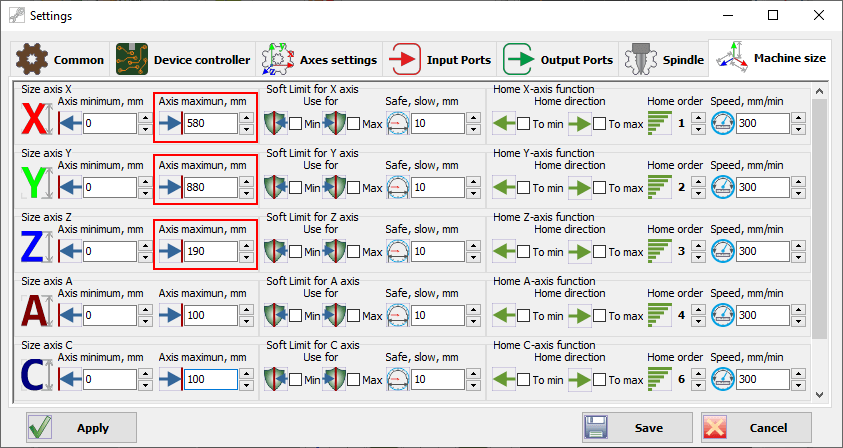

4. Let's set the following maximum sizes for 3 axes:
X - 580
Y - 880
Z - 190
machine_coordinates

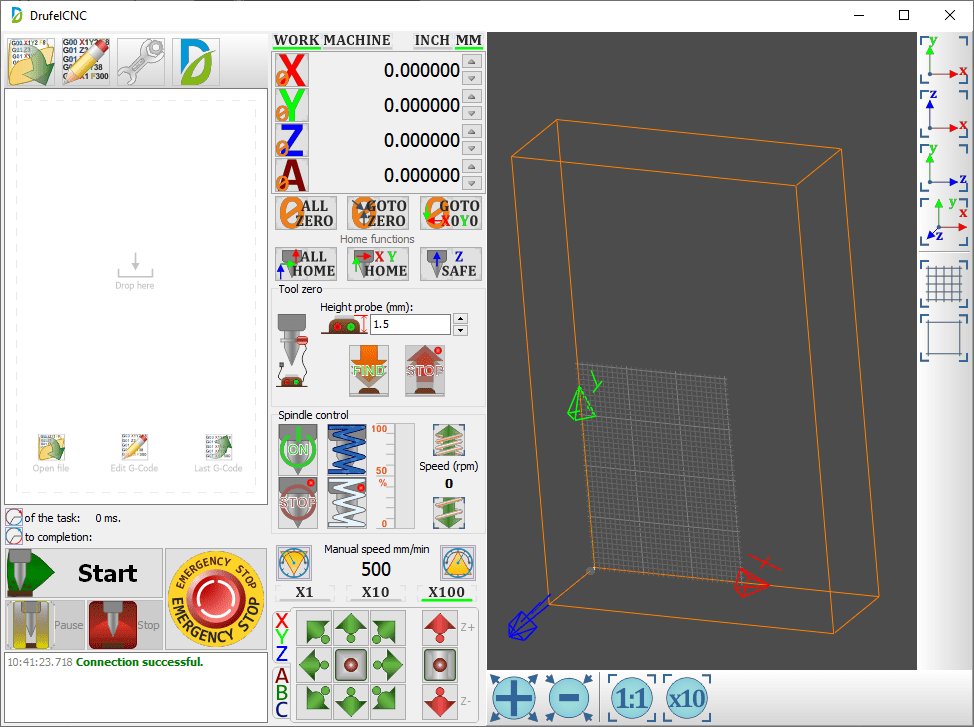

5. Save the settings. 6. In the 3D models window, we will see the dimensions of the machine in the form of quadrangles in each plane. machine_coordinates

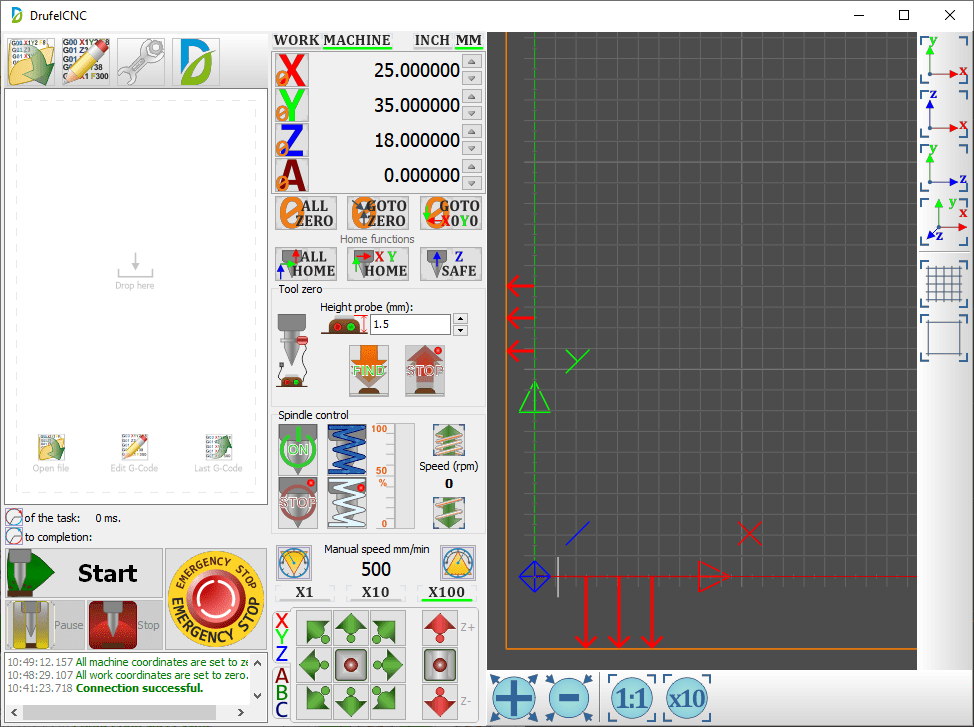

7. For clarity, enter arbitrary values in the “Machine coordinates” field. We see that the origin of the work coordinates has shifted.
machine_coordinates
