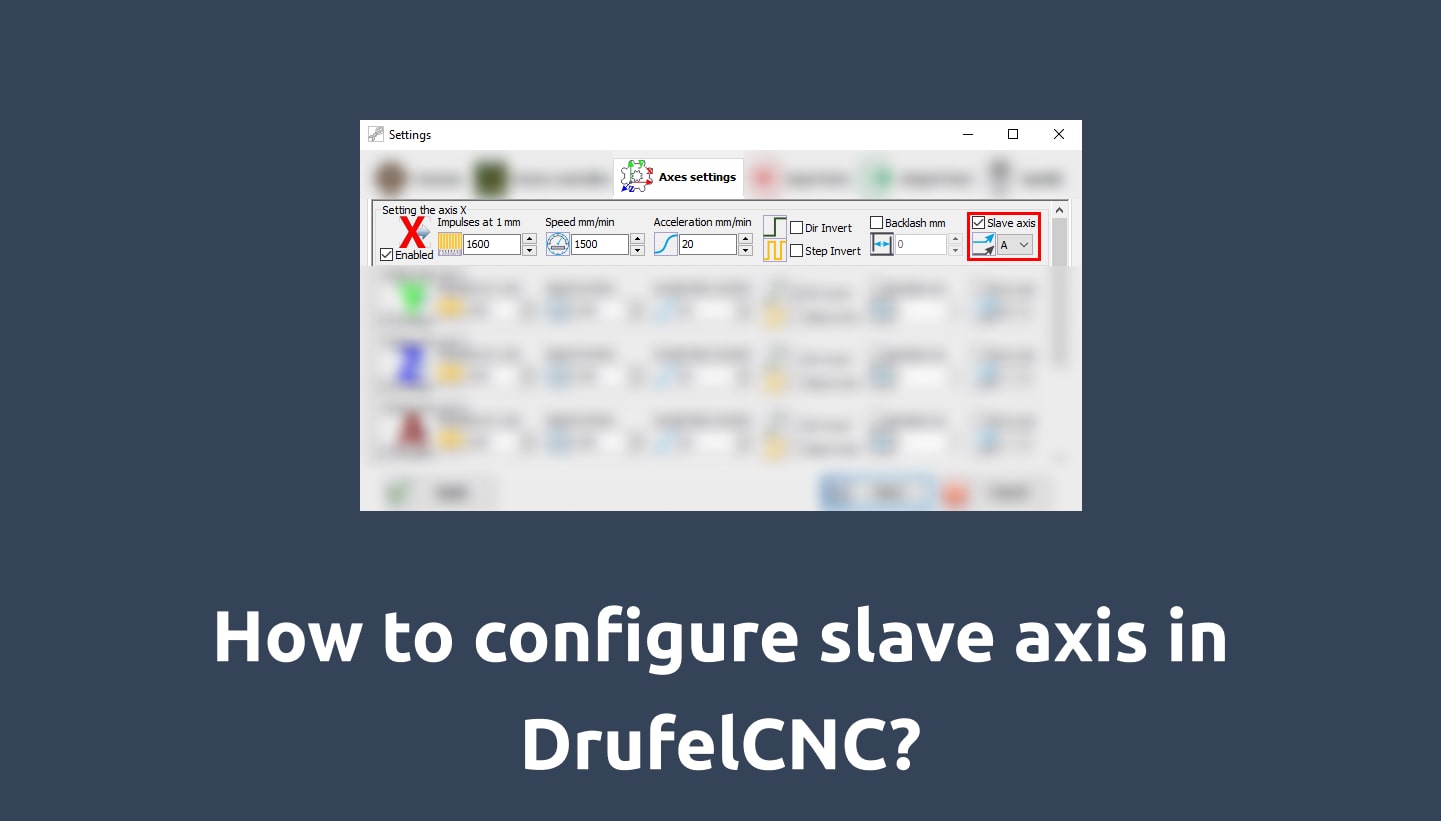

How to configure slave axis in DrufelCNC?

slave_axis

In DrufelCNC you can customize the slave axis.

In order to configure the slave axis in DrufelCNC you need:
1. Run DrufelCNC.
2. In the upper left corner, click on the “Show settings” button.
3. Go to the Axes settings tab.
4. Next, configure the axes:
Click on the “Slave axis” checkbox and select the desired slave axis.
scrin
If you need to set the slave for the X axis, click on the “Slave axis” checkbox under “Setting the axis X”.
scrin

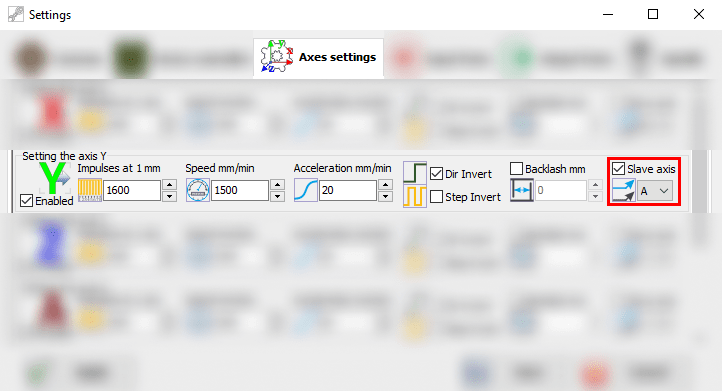

If you need to set the slave for the Y axis, click on the “Slave axis” checkbox in the “Setting the Y axis” section. scrin

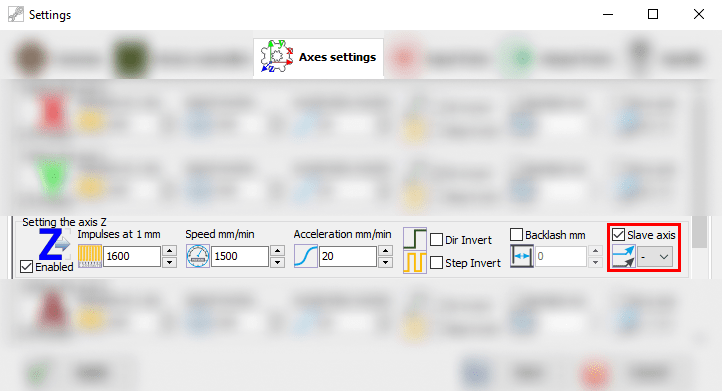

If you need to set the slave for the Z axis, click on the “Slave axis” checkbox under “Setting the axis Z”. scrin

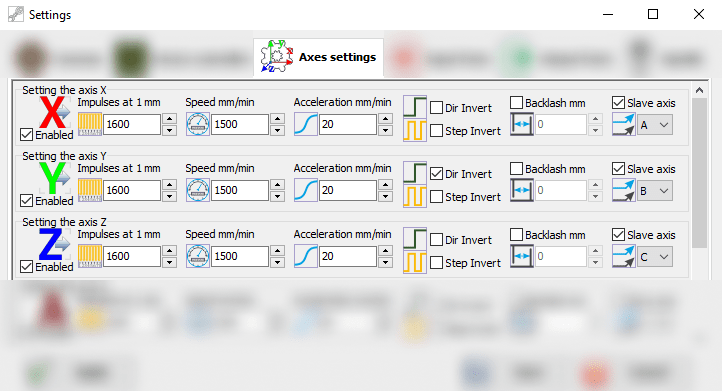

Also you can configure differently: scrin
Do not forget that all the axes must be set correctly!
For the main and slave axes, set the correct number of pulses per mm.
Typically, the same motor settings and configurations are used for synchronous operation of the slave and master axes.
